| Availability: | |
|---|---|
| Quantity: | |
| Core technical parameters | |
| Materials and Heat Treatment | Accuracy standards |
| High purity alloy steel with grade 20CrMnTiH Carburizing and quenching treatment: surface hardness HRC 58-62, core hardness HRC 30-35 Depth of carburized layer: 1.2-1.6mm, ensuring high wear resistance and impact toughness | Gear accuracy: National standard level 6 (equivalent to ISO 1328 class 6) Tooth surface roughness: Ra ≤ 0.8 μ m, meshing noise ≤ 75dB |
| performance metrics | special process |
| Torque capacity: ≥ 12000 Nm (suitable for rear axle rated load) Fatigue life: ≥ 500000 cycles (bench test standard) Transmission efficiency: ≥ 98.5% (optimized tooth design to reduce oil mixing loss) | Shot peening strengthening of tooth surface: increases fatigue strength by 40% Phosphating coating: improving lubricant adsorption capacity Shaping process: chamfering of tooth ends and topological edge trimming to avoid edge stress concentration |

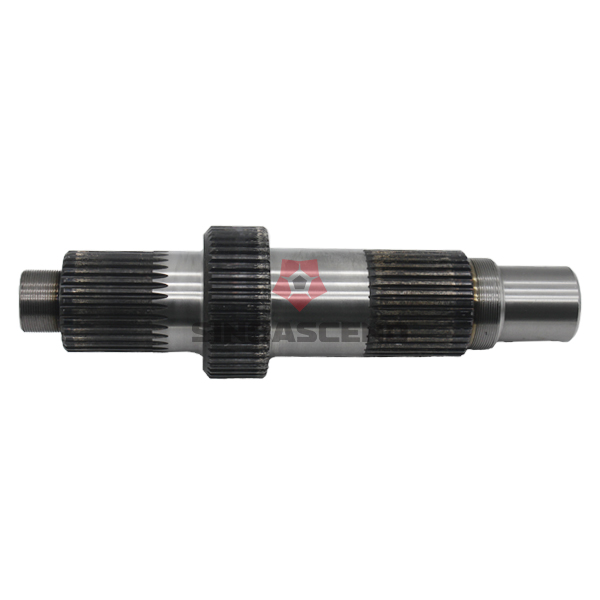

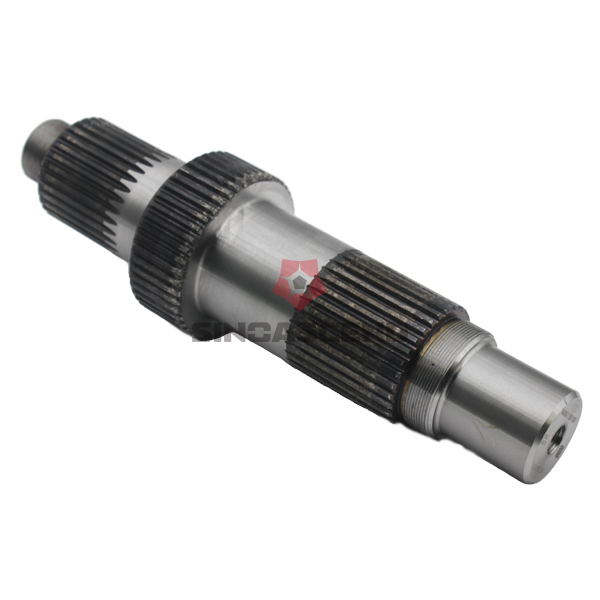

As a premier manufacturer and global supplier of heavy-duty commercial vehicle components, we present the precision-engineered Dump Truck Front Axle Input Shaft for Iveco Truck Axle Spare Parts 42102309. Designed specifically for rigorous earth-moving and construction environments, this component ensures maximum drivetrain integrity. Sourcing directly from the manufacturer guarantees exceptional cost-efficiency for volume procurement while maintaining uncompromised operational excellence.
Direct-from-manufacturer pricing structure for volume procurement
Engineered specifically for extreme torque and heavy payload applications
Ready for rapid, high-volume global distribution and supply chain integration
The Dump Truck Front Axle Input Shaft for Iveco Truck Axle Spare Parts 42102309 stands as a masterclass in modern metallurgical engineering and precision manufacturing. When integrating this component into a heavy-duty drivetrain, fleet operators will immediately notice the flawless, vibration-free power transfer, a direct result of its meticulously refined tooth geometry and ultra-smooth surface finish. Crafted from premium 20CrMnTiH alloy steel, the shaft feels reassuringly dense and robust, featuring a distinct, dark-grey phosphated finish that speaks to its superior corrosion resistance and oil-retaining capabilities. During operation, the acoustic profile is remarkably subdued, keeping meshing noise strictly below 75 decibels, which dramatically reduces operator fatigue inside the cabin. By eliminating edge stress concentration through advanced topological edge trimming, this input shaft prevents catastrophic gear failure under the sudden, massive load spikes common in mining and construction sites. Ultimately, this component solves the persistent industry challenge of premature axle wear, dramatically extending maintenance intervals, reducing vehicle downtime, and maximizing the operational profitability of heavy-duty fleets.
Specification Category | Technical Details |
|---|---|
Product Name | Dump Truck Front Axle Input Shaft |
Part Number | 42102309 |
Applicable Vehicle | Iveco Heavy Duty Dump Truck |
Core Material | High purity alloy steel 20CrMnTiH |
Heat Treatment | Carburizing and quenching treatment |
Surface Hardness | HRC 58-62 |
Core Hardness | HRC 30-35 |
Carburized Layer Depth | 1.2-1.6mm |
Gear Accuracy | National standard level 6 / ISO 1328 class 6 |
Tooth Surface Roughness | Ra ≤ 0.8 μm |
Meshing Noise | ≤ 75dB |
Torque Capacity | ≥ 12000 Nm |
Fatigue Life | ≥ 500,000 cycles (bench test standard) |
Transmission Efficiency | ≥ 98.5% |
Surface Treatment | Shot peening strengthening, Phosphating coating |
Forming Process | Chamfering of tooth ends and topological edge trimming |
Core technical parameters | |
Materials and Heat Treatment | Accuracy standards |
High purity alloy steel with grade 20CrMnTiH | Gear accuracy: National standard level 6 (equivalent to ISO 1328 class 6) |
performance metrics | special process |
Torque capacity: ≥ 12000 Nm (suitable for rear axle rated load) | Shot peening strengthening of tooth surface: increases fatigue strength by 40% |
Engineering a drivetrain component for heavy-duty earthmovers requires an uncompromising approach to both design and execution. This input shaft is meticulously crafted to deliver unparalleled reliability, ensuring your fleet remains operational even in the most unforgiving terrains. We have integrated advanced metallurgical techniques with state-of-the-art machining to create a product that outperforms standard aftermarket alternatives, delivering tangible improvements to vehicle longevity and daily operational efficiency.
Exceptional Load Bearing: Handles peak torque loads effortlessly, preventing shaft shearing during steep inclines or heavy payload starts in challenging off-road conditions.
Acoustic Optimization: The ultra-smooth tooth surface ensures a quiet mesh, minimizing mechanical vibrations that can loosen adjacent drivetrain components over time.
Friction Reduction: Optimized gear profiles reduce oil churning losses, keeping the axle assembly cooler and preserving the chemical integrity of the lubricating fluid for longer periods.
Rapid Installation: Exacting dimensional tolerances mean the shaft drops perfectly into the axle housing, saving hours of labor during assembly line production or routine maintenance.
The foundation of any heavy-duty drivetrain component lies in its metallurgical composition. We utilize exclusively high-purity 20CrMnTiH alloy steel, renowned globally for its exceptional structural integrity and responsiveness to thermal processing. Through a precisely controlled carburizing and quenching process, we achieve a highly desirable dual-property structure. The exterior boasts an ultra-hard wear surface reaching HRC 58-62 with a deep carburized layer of 1.2-1.6mm, designed to resist severe abrasive wear during continuous heavy-load operations. Beneath this impenetrable shell lies a resilient, shock-absorbing core maintained at HRC 30-35. This "hard on the outside, tough on the inside" engineering marvel perfectly adapts to the high-intensity working environments of heavy dump trucks, absorbing sudden impact shocks without fracturing and maintaining structural stability under extreme thermal stress.
Prevents catastrophic shaft snapping under sudden torque spikes.
Significantly extends the operational lifespan of the entire axle assembly.
Maintains dimensional stability even in extreme temperature fluctuations.
Reduces the frequency of costly drivetrain overhauls.
Achieving flawless mechanical synchronization requires absolute precision at a microscopic level. This input shaft is machined to an exacting ISO 1328 Class 6 gear accuracy, boasting a tooth surface roughness of Ra ≤ 0.8 μm. This mirror-like smoothness guarantees that meshing noise is strictly suppressed below 75dB, contributing to a quieter, more comfortable operating environment. Furthermore, we employ advanced topological edge trimming and tooth end chamfering. These specialized forming processes eliminate edge stress concentrations, preventing the micro-cracking that typically leads to gear failure. The addition of tooth surface shot peening elevates the overall fatigue strength by an impressive 40%, while the specialized phosphating coating creates a micro-porous surface that actively traps and retains lubricating oil, ensuring dry starts are a thing of the past.
Virtually eliminates the risk of gear edge chipping under heavy loads.
Ensures a seamless, vibration-free power delivery to the axle components.
Enhances lubricant adhesion, providing critical protection during cold starts.
Exceeds standard industry benchmarks for gear machining precision.
Designed specifically to conquer the punishing environment of heavy-duty rear axles, this component delivers highly quantifiable performance upgrades that directly impact the bottom line. It boasts a staggering torque capacity exceeding 12,000 Nm, allowing it to handle massive payloads and steep inclines without the slightest deformation. Rigorous bench testing confirms a fatigue life surpassing 500,000 cycles, ensuring years of reliable, uninterrupted service in the field. Beyond raw strength, the optimized tooth design actively reduces oil mixing and churning losses. This critical engineering detail allows the shaft to achieve a remarkable transmission efficiency of over 98.5%. For large-scale operations, this translates directly into maximized power delivery to the wheels, reduced parasitic power loss, and optimized fuel consumption across the entire fleet.
Handles the most extreme payload demands without mechanical hesitation.
Translates engine power to wheel torque with near-perfect efficiency.
Lowers operating temperatures within the axle housing, protecting seals and bearings.
Provides a verifiable return on investment through extended service life.
Seamless integration is absolutely critical for large-scale procurement and streamlined assembly operations. This input shaft offers 100% drop-in compatibility with Iveco heavy-duty truck and dump truck front axle systems, perfectly matching the exact specifications of OEM part number 42102309. There is no need for secondary machining or forced fitment; it aligns perfectly right out of the box. As a primary source manufacturer, our capabilities extend far beyond standard off-the-shelf solutions. We offer extensive engineering support and robust OEM/ODM services for specialized requirements. Whether you need modifications based on proprietary technical blueprints or require us to reverse-engineer from physical samples, our facility is fully equipped to deliver bespoke drivetrain solutions tailored to your specific vehicle modifications.
Guarantees zero-hassle installation for maintenance crews and assembly lines.
Eliminates the guesswork associated with aftermarket component sourcing.
Provides a scalable platform for custom heavy-duty vehicle engineering.
Supports the unique demands of specialized mining and construction vehicles.
Unwavering reliability is non-negotiable when equipping commercial fleets, where every minute of downtime equates to lost revenue. Our manufacturing facilities operate under strict adherence to ISO/TS16949 and SGS quality management systems, representing the highest global standards for automotive component production. Every single input shaft undergoes a rigorous 100% inspection protocol before it is cleared for dispatch. From the moment the raw alloy steel enters our facility to the final dimensional check on the assembly line, we utilize advanced coordinate measuring machines (CMM) and non-destructive testing (NDT) to verify exact tolerances and ensure there are zero internal metallurgical flaws. This relentless pursuit of perfection guarantees that every piece matches OEM standards, providing procurement managers with absolute peace of mind.
Delivers a zero-defect guarantee for high-volume procurement orders.
Ensures every component performs exactly as engineered under real-world stress.
Provides full traceability from raw material sourcing to final product delivery.
Meets and exceeds the stringent compliance requirements of international markets.
Protecting high-precision machined components during complex global transit routes is a top priority. We utilize robust, export-grade wooden crates that are impervious to moisture, salt air, and physical impacts during sea or air freight. Inside, each shaft is enveloped in specialized anti-rust vapor barrier bags and secured with custom-molded shock-absorbing foam, ensuring the product arrives in pristine, factory-fresh condition. We offer highly flexible packaging solutions, including neutral boxing, customized brand packaging, or bulk industrial crating. Backed by a robust monthly production capacity reaching 50,000 units, we ensure your supply chain remains fluid and uninterrupted. Standard orders are rapidly dispatched within 3 to 10 days post-payment, providing the agility needed to respond to sudden market demands.
Completely eliminates the risk of transit-induced rust or mechanical damage.
Offers customizable packaging to align with your internal inventory systems.
Ensures rapid replenishment of critical spare parts inventory.
Easily scales to accommodate sudden, massive spikes in volume requirements.
We stand firmly behind the engineering, metallurgy, and durability of our drivetrain components. Buyers are protected by a comprehensive 12-month (365-day) quality warranty, safeguarding your investment against any manufacturing anomalies. We understand that in the heavy-duty sector, support must be as reliable as the product itself. Our dedicated technical support team, comprised of seasoned mechanical engineers, is available around the clock to assist with installation queries, performance optimization, or technical troubleshooting. In the rare event of a quality concern within the warranty period, we provide a streamlined, hassle-free claim and replacement protocol. This comprehensive safety net completely eliminates post-purchase risks, allowing procurement professionals to source with absolute confidence.
Provides a full year of financial and operational protection.
Grants direct access to expert engineering advice and technical guidance.
Ensures rapid resolution of any operational anomalies to minimize downtime.
Builds long-term, trust-based partnerships with volume distributors.
Selecting the right manufacturing partner is a critical strategic decision that directly impacts your bottom line, fleet reliability, and overall operational efficiency. We bridge the gap between premium engineering and cost-effective procurement, delivering axle components that consistently exceed industry standards. Our deep-rooted expertise in commercial vehicle drivetrains allows us to anticipate industry challenges and engineer proactive, highly durable solutions. By partnering with us, you are securing a supply chain advantage that translates into measurable business growth.
Direct Source Economics: By eliminating intermediaries, we provide highly competitive pricing structures that maximize your procurement budget without sacrificing an ounce of quality.
Unmatched Production Scale: Our state-of-the-art facilities easily accommodate massive volume requirements, ensuring consistent delivery schedules even during peak global demand.
Engineering Heritage: Decades of specialized experience in heavy-duty metallurgy and gear machining ensure every product is built to endure the harshest environments on earth.
Global Logistics Mastery: We navigate complex international shipping routes efficiently, ensuring your inventory arrives exactly when and where it is needed, perfectly intact.
How does the 20CrMnTiH alloy steel improve the operational lifespan of the input shaft?
20CrMnTiH is a premium structural alloy specifically formulated for heavy-duty gear applications. Its high titanium and manganese content allows for superior carbon absorption during the carburizing process. This results in an exceptionally hard wear surface (HRC 58-62) that resists abrasion, while maintaining a ductile core (HRC 30-35) that absorbs sudden drivetrain shocks without snapping, drastically extending the component's lifespan.
Can this input shaft withstand the continuous high-torque environments of mining operations?
Absolutely. The shaft is engineered with a massive torque capacity exceeding 12,000 Nm. Combined with the shot peening treatment—which actively increases fatigue strength by 40%—it is explicitly designed to handle the continuous rotational forces and sudden load spikes generated by fully loaded dump trucks operating on steep, unpaved mining inclines.
What measures are taken to prevent rust and corrosion during international shipping and storage?
Each shaft undergoes a meticulous phosphating process that provides a strong base layer of corrosion resistance. Before dispatch, the components are sealed in specialized anti-rust VCI (Vapor Corrosion Inhibitor) bags and packed securely in moisture-resistant, export-grade wooden crates, ensuring they remain pristine even during prolonged sea freight or warehouse storage.
Is it possible to request custom dimensional modifications for specialized fleet applications?
Yes, our engineering department is fully equipped to handle comprehensive OEM and ODM requests. If your specific fleet requires unique spline modifications, altered shaft lengths, or different gear ratios for specialized off-road vehicles, we can manufacture exactly to your technical blueprints or reverse-engineer directly from physical samples.
How does the topological edge trimming affect the overall performance of the axle assembly?
Traditional gear machining often leaves microscopic sharp edges that concentrate stress, leading to micro-fractures under heavy loads. Topological edge trimming and tooth end chamfering smooth out these critical areas, distributing the mechanical load evenly across the entire gear face. This prevents premature wear, eliminates edge chipping, and significantly reduces meshing noise for a smoother operation.
