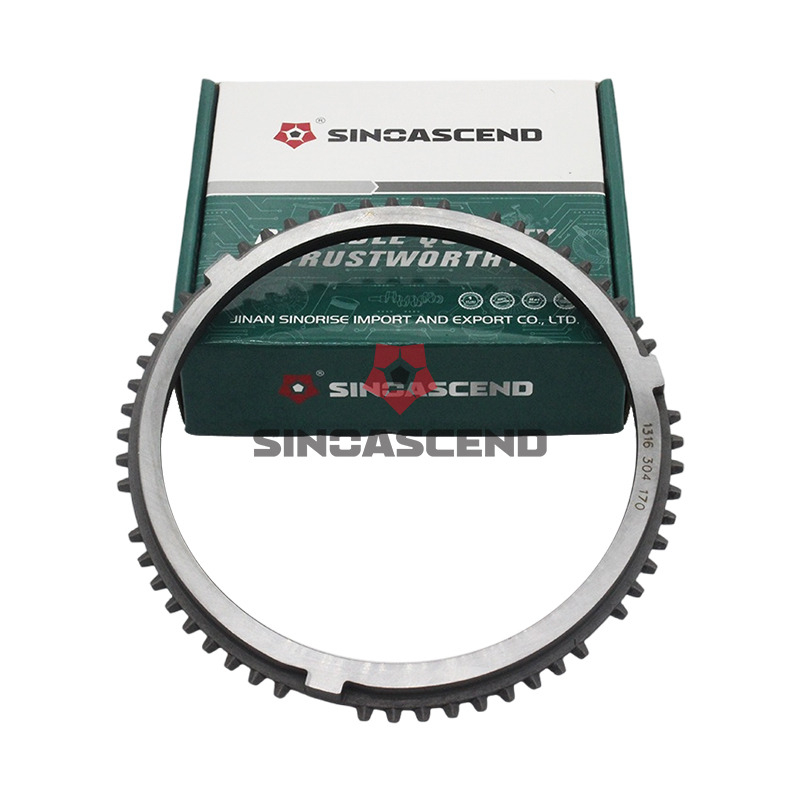

ZF Synchronizer Ring for Truck Gearboxes

Product Overview

• As a premier manufacturer and supplier of heavy-duty transmission components, we engineer precision synchronizer rings designed for rigorous commercial applications.

• This specialized component ensures seamless gear transitions and optimal torque management for demanding heavy-duty vehicles.

• Direct from the manufacturer sourcing ensures optimal cost-efficiency for large-scale procurement.

• Engineered specifically for 7-speed manual transmissions requiring high-stress endurance.

• Capable of effortlessly handling up to 1000 lb-ft of torque capacity.

• Constructed from high-grade triple plate clutch steel for maximum longevity.

• Available for volume procurement with robust, consistent production capabilities.

Product Description

The 1316304170 synchronizer ring represents the pinnacle of transmission component engineering, meticulously crafted to withstand the punishing environments of heavy-duty commercial operations. When held, the component exudes a dense, substantial weight—a tactile testament to the premium steel forged into its core. The surface finish reveals a flawlessly machined texture, capturing the light along its micro-honed gear teeth, which are precisely angled to facilitate frictionless engagement. Every shift becomes a silent, fluid motion, eliminating the harsh grinding noises and mechanical shock that typically plague inferior transmission setups.

By integrating this synchronizer ring into your fleet's gearboxes, you are actively preventing premature transmission failure and costly operational downtime. The component acts as a vital mechanical mediator, synchronizing rotational speeds with absolute precision before gear engagement. This translates to a noticeably smoother driving experience, significantly reduced driver fatigue, and substantially lower maintenance overhead. The robust architecture of this ring guarantees that even under maximum payload conditions, the transmission will perform with unwavering reliability, keeping commercial vehicles on the road and ensuring that operational margins remain highly profitable.

Product Specifications

Key Features & Highlights

Equipping your commercial vehicles with our synchronizer ring introduces a multitude of mechanical and operational advantages. We focus on engineering components that solve real-world transmission challenges, ensuring your fleet remains productive, efficient, and on the move.

• Exceptional Load Management: Designed to effortlessly handle a massive 1000 lb-ft torque capacity, ensuring stable power delivery even when navigating steep inclines with maximum payloads.

• Thermal Stability: Optimized for air-cooled systems, the structural integrity of the ring remains uncompromised even during prolonged periods of intense friction and rapid heat generation.

• Acoustic Refinement: The micro-polished surface finish and exact dimensional tolerances work in harmony to drastically reduce transmission whine and vibration, resulting in a significantly quieter cabin environment.

• Extended Component Synergy: By ensuring perfect rotational matching, this ring protects surrounding gears, shafts, and bearings from sudden shock loads, effectively doubling the lifespan of the entire gearbox assembly.

Material & Wear Resistance

The foundation of any enduring transmission component lies in its metallurgical composition. We understand that frequent shifting in high-friction environments demands extraordinary material resilience to prevent premature wear and catastrophic gearbox failures.

• Premium Steel Alloy: Forged from high-grade triple plate clutch steel, offering an exceptional strength-to-weight ratio and superior resistance to mechanical shearing forces under heavy acceleration.

• Anti-Fatigue Properties: The inherent toughness of the selected alloy prevents micro-cracking under repetitive stress, ensuring the synchronizer teeth maintain their aggressive bite over millions of shift cycles.

• Friction Optimization: The material composition is specifically tailored to interact seamlessly with heavy-duty transmission fluids, maintaining a consistent coefficient of friction that prevents slipping while minimizing abrasive wear.

• Maintenance Reduction: By utilizing materials that actively resist degradation, fleet operators experience a dramatic decrease in the frequency of transmission overhauls, directly improving operational efficiency and the bottom line.

Advanced Processing & Heat Treatment

Our manufacturing floor utilizes a highly synchronized, multi-stage processing workflow. From the initial forging to the final surface treatment, every single step is meticulously calibrated to produce a synchronizer ring of unparalleled durability and strength.

• Carburizing & Carbonitriding: We subject each ring to advanced thermochemical treatments, achieving a formidable surface hardness of 58-62 HRC. This creates an impenetrable outer shield against extreme friction.

• Deep Penetration Layer: The infiltration layer depth is strictly controlled between 0.8-1.2mm, providing a thick, robust barrier of hardened steel that withstands years of heavy-duty gear engagement.

• Shot Peening Technology: By bombarding the component surface with spherical media at high velocities, we introduce beneficial residual compressive stresses. This crucial step elevates the fatigue life of the ring by an impressive 20% to 30%.

• Core Toughness Retention: While the exterior is hardened to extreme levels, our proprietary heat treatment process ensures the inner core remains ductile and tough, preventing the brittleness that causes inferior rings to shatter under sudden impact.

Precision & OEM Compatibility

In the realm of heavy-duty transmissions, even a microscopic deviation can lead to inefficient power transfer and severe mechanical damage. Our synchronizer rings are machined to exacting tolerances, guaranteeing flawless integration with original equipment architectures.

• ISO 6-8 Level Accuracy: Every gear tooth is cut with surgical precision, achieving top-tier ISO accuracy standards. This ensures that the ring meshes instantly and securely with corresponding gears without hesitation.

• Ultra-Smooth Surface Finish: We utilize advanced hobbing and honing techniques to achieve a tooth surface roughness of Ra ≤ 1.6 μm. This mirror-like finish drastically reduces friction, heat generation, and operational noise.

• Dimensional Stability: Post-heat treatment deformation is rigorously controlled, with tooth alignment errors kept strictly below 0.02mm, ensuring the ring maintains its perfect geometry regardless of fluctuating operating temperatures.

• Drop-In Replacement: Engineered to the exact specifications of OEM standards, this component allows technicians to perform swift, hassle-free installations without the need for custom modifications, grinding, or complex shimming.

Quality Control & Testing

Consistency and reliability are non-negotiable when sourcing critical drivetrain components. Our quality assurance protocols are designed to eliminate defects and guarantee that every unit delivered performs exactly as specified under the harshest conditions.

• Pre-Production Verification: Before mass manufacturing commences, comprehensive pre-production samples are subjected to destructive and non-destructive testing to validate material integrity, hardness, and design parameters.

• 100% Final Inspection: Every single synchronizer ring undergoes a rigorous final inspection prior to packaging. We do not rely on random batch sampling; every unit must pass our strict visual and mechanical criteria.

• Deformation Monitoring: Utilizing advanced optical measurement systems, we verify that the dimensional stability remains absolute, ensuring zero warping or distortion occurs post-manufacturing.

• Performance Consistency: Our stringent quality management systems guarantee that whether you order ten units or five thousand, the performance, fit, and finish will be identical across the entire shipment, ensuring absolute predictability for your operations.

OEM/ODM & Customization Services

We recognize that the commercial vehicle market is highly diverse, and standard off-the-shelf solutions may not always meet specific operational requirements. Our flexible manufacturing infrastructure is built to accommodate specialized demands seamlessly.

• Direct Factory Sourcing: By bypassing intermediaries, procurement teams gain direct access to our engineering departments, ensuring clear technical communication and highly competitive pricing structures for volume orders.

• Sample-Based Customization: We possess the advanced capability to reverse-engineer or modify existing designs based on client-provided samples, delivering tailor-made components that fit unique or legacy transmission architectures.

• Scalable Production: With a robust production capacity of 5,000 pieces per month, we can effortlessly fulfill large-scale, continuous orders without compromising on lead times, precision, or material quality.

• Brand Enhancement: We offer comprehensive bespoke packaging solutions, allowing large-scale repair networks and distributors to receive products in packaging that reflects their own brand identity and premium quality standards.

Secure Packaging & Fast Delivery

The journey from our manufacturing facility to your assembly line or distribution center is fraught with logistical hazards. We have engineered our packaging and dispatch protocols to ensure your components arrive in pristine condition, precisely when you need them.

• Industrial-Grade Protection: Each ring is meticulously treated with premium anti-rust compounds and vacuum-sealed before being placed in high-end, impact-resistant cardboard enclosures to prevent environmental degradation.

• Reinforced Wooden Crating: For international transit, orders are securely packed within customized, heavy-duty wooden boxes (measuring 50.00cm x 50.00cm x 60.00cm), providing ultimate protection against crushing forces and moisture during sea freight.

• Optimized Inventory Management: We maintain strategic stock levels of standard components, enabling rapid dispatch within 3 to 7 days for available inventory, significantly reducing your operational downtime and keeping vehicles moving.

• Reliable Global Transit: Whether shipping via sea freight or expedited air cargo, our logistics team coordinates closely with trusted international carriers to ensure predictable, on-time delivery schedules that align perfectly with your supply chain demands.

Why Choose Us

Partnering with a seasoned manufacturer transforms your procurement process from a logistical challenge into a strategic advantage. Our decade-long dedication to automotive part excellence positions us as a reliable, foundational pillar in your supply chain.

• Decade of Expertise: With over ten years deeply embedded in the heavy-duty auto parts industry, we possess an intimate, practical understanding of transmission dynamics, wear patterns, and longevity requirements.

• Integrated Manufacturing: Operating two dedicated facilities with a workforce of approximately 500 skilled professionals allows us to maintain absolute control over every single phase of production, from raw material sourcing to final dispatch.

• Uncompromising Material Standards: We absolutely refuse to cut corners on raw materials. By exclusively utilizing high-grade steel, we ensure that our products consistently outlast cheaper, inferior alternatives on the market.

• Dedicated Support Ecosystem: From initial technical inquiries regarding gear specifications to comprehensive after-sales support, our dedicated team provides seamless communication, ensuring your procurement experience is efficient, transparent, and highly responsive.
