Aftermarket Synchronizer Cone for Truck Transmissions

Product Overview

• Direct supply from a premium manufacturer, ensuring exceptional cost-efficiency and strict quality control for large-scale procurement.

• Expertly engineered for 7-speed and 16-speed heavy-duty commercial vehicles and dump trucks.

• Delivers a massive 1000 lb-ft torque capacity to handle extreme payload demands without mechanical hesitation.

• Constructed from high-strength alloy steel with advanced air-cooled dynamics for superior thermal management.

Product Description

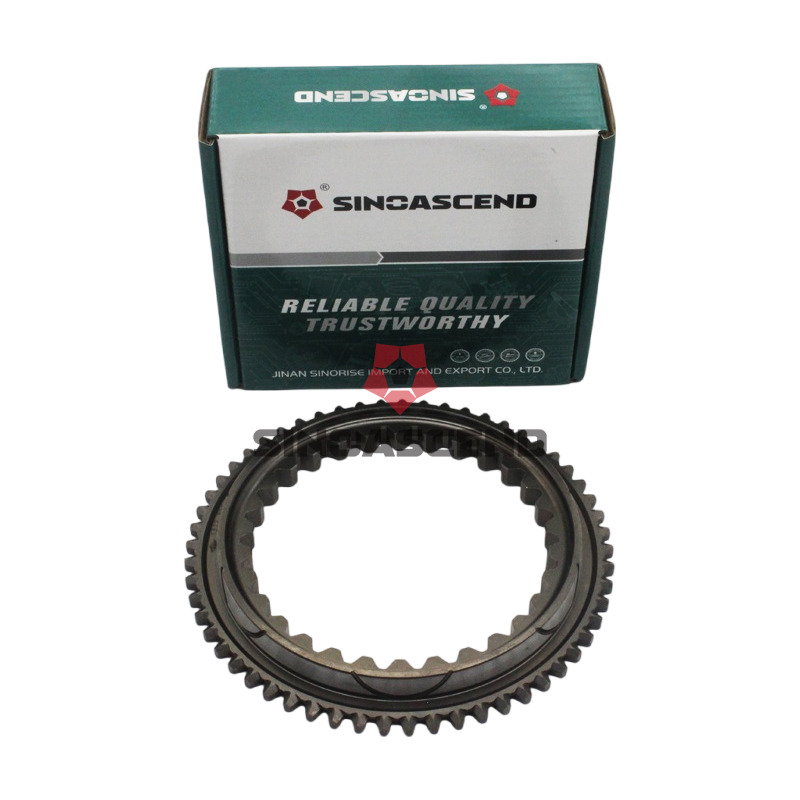

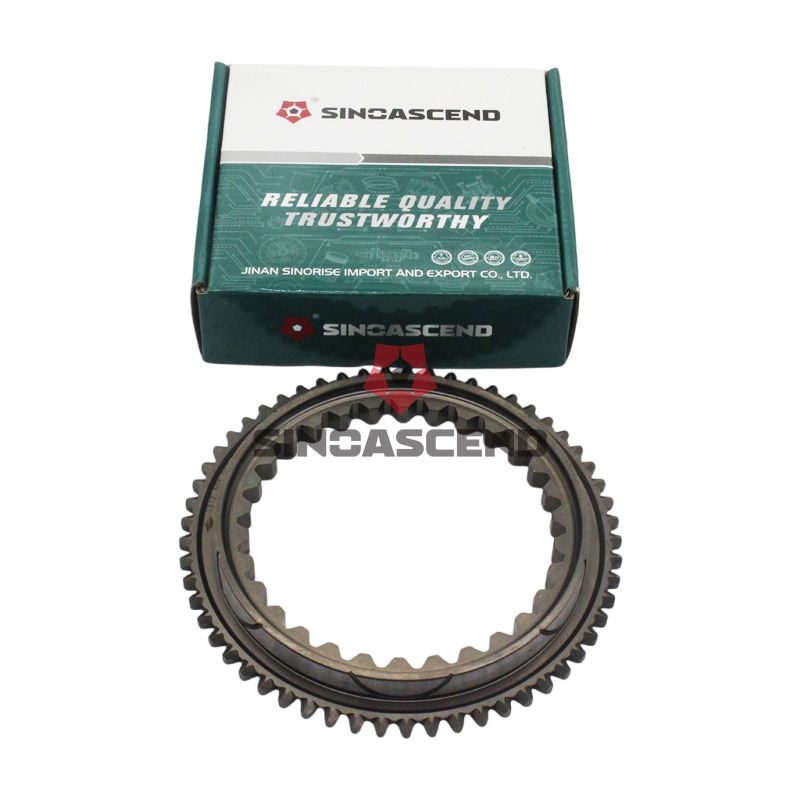

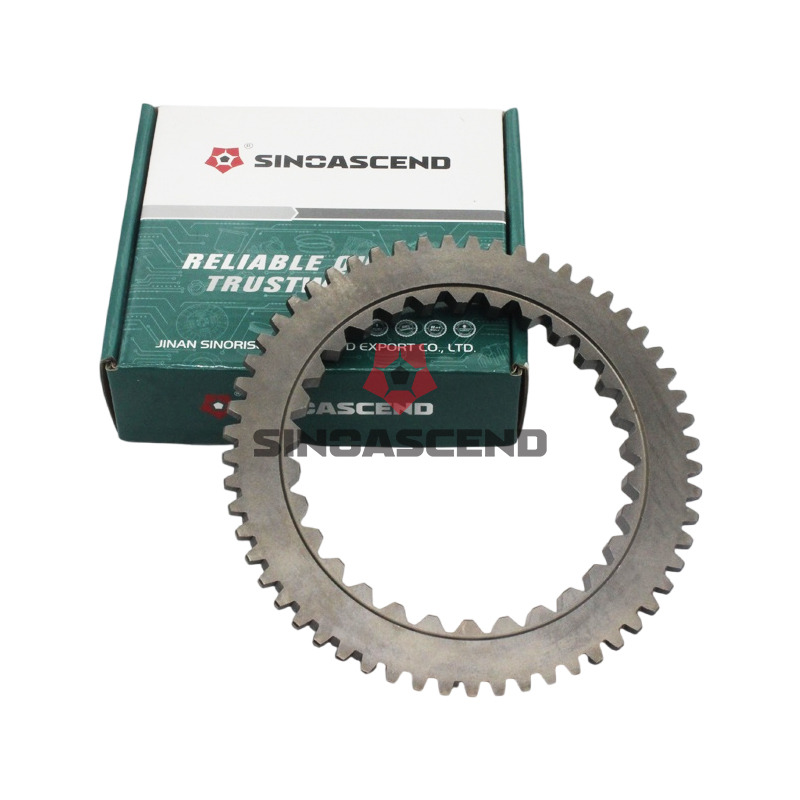

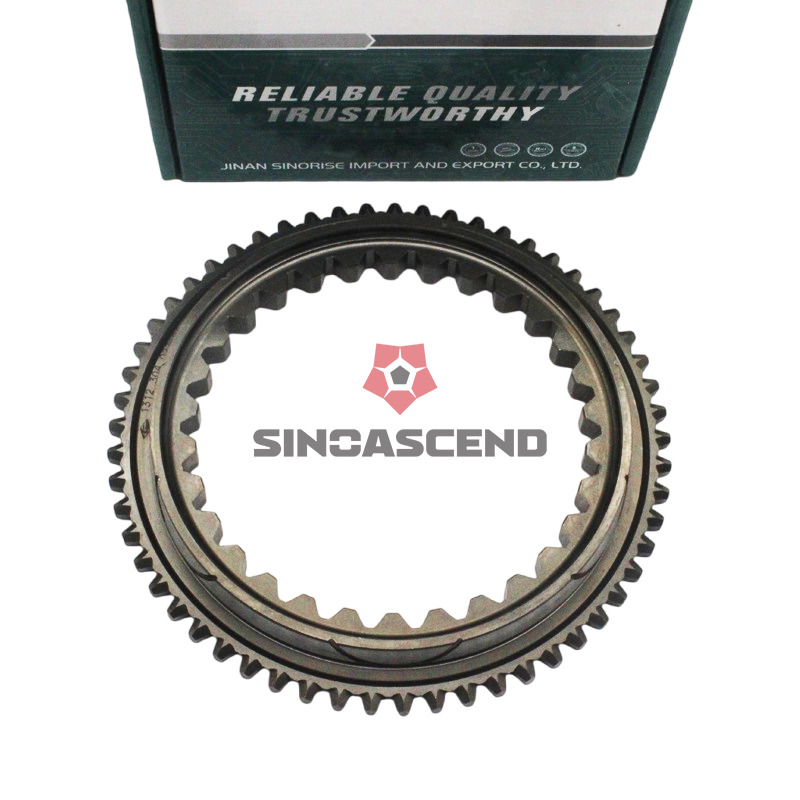

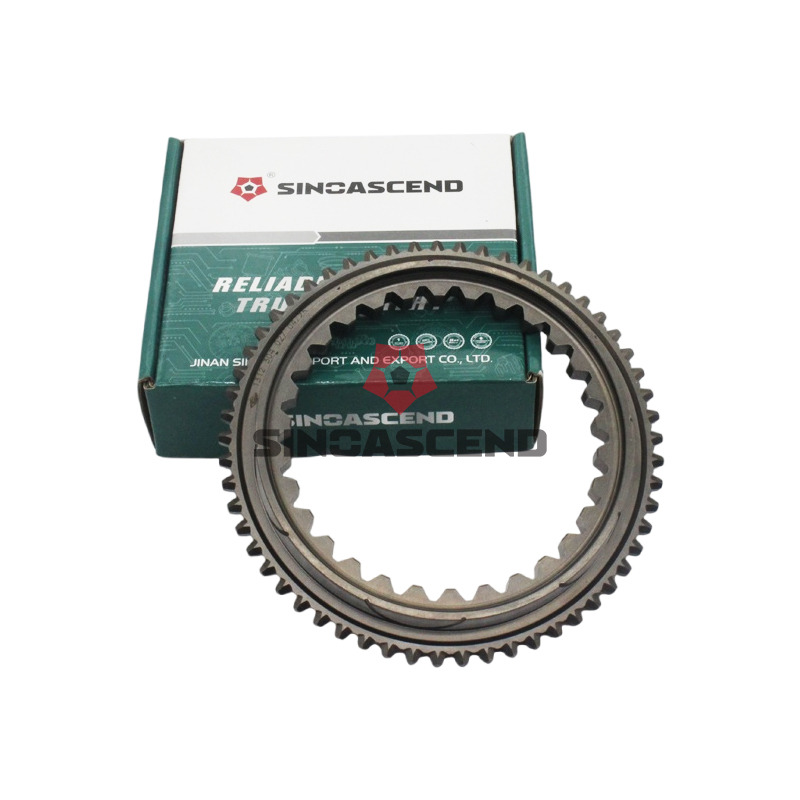

The 1325333018 ZF SINOASCEND BRAND Transmission Synchronizer Sleeve for Truck Gearbox represents the pinnacle of commercial vehicle drivetrain engineering. Designed specifically to endure the punishing environments of heavy-duty dump trucks and long-haul freight vehicles, this synchronizer sleeve acts as the critical bridge between engine power and wheel torque. When operators shift gears under immense payload stress, the sleeve ensures a frictionless, silent, and instantaneous engagement, eliminating the harsh grinding noises and mechanical wear typically associated with inferior aftermarket parts. Crafted from premium triple-plate clutch steel and subjected to meticulous thermal refining, the metallic structure achieves a perfect equilibrium—a diamond-hard exterior that resists severe abrasive friction, paired with a resilient, shock-absorbing core that prevents catastrophic shattering under sudden torque spikes. By integrating this masterfully machined component into your drivetrain assemblies, fleet operators drastically reduce vehicle downtime, lower long-term maintenance expenditures, and restore the transmission's original, butter-smooth shifting tactile feedback. It is not merely a replacement part; it is a comprehensive upgrade to the operational longevity and reliability of your commercial vehicle assets.

Product Specifications

Key Features & Highlights

Upgrading your transmission system requires components that go beyond basic fitment. This synchronizer sleeve is engineered to deliver a transformative shifting experience, minimizing mechanical resistance and maximizing power transfer efficiency across the entire drivetrain.

• Flawless Engagement: Meticulously chamfered splines ensure that every gear shift feels crisp and immediate, eliminating the sluggish or jarring transitions that fatigue drivers during long hauls.

• Acoustic Refinement: Thanks to the ultra-smooth surface finish, metallic friction is drastically reduced, translating to a whisper-quiet gearbox operation even under maximum payload conditions.

• Thermal Resilience: Integrated air-cooled dynamics and premium alloy construction allow the sleeve to dissipate extreme friction heat rapidly, preventing thermal expansion that could cause gear binding.

• Optimized Power Flow: Capable of handling a massive 1000 lb-ft of torque, it guarantees that the engine's raw power is transmitted to the axles without parasitic loss or slippage.

• Dimensional Integrity: Post-machining deformation is strictly controlled to an imperceptible margin, ensuring the sleeve maintains its perfect geometric shape through years of relentless mechanical stress.

Material & Heat Treatment

The foundation of any exceptional transmission component lies in its metallurgical composition. We utilize premium high-strength alloy steel, specifically selecting top-tier grades like 20CrMnTi and 20Crmo, which are globally recognized for their extraordinary load-bearing capabilities in commercial transport.

To achieve the ultimate balance of durability and resilience, each sleeve undergoes a rigorous deep carburizing and carbonitriding thermal process.

• Deep Infiltration Layer: The carbon-rich layer penetrates 0.8 to 1.2mm into the steel matrix, creating an impenetrable armor against continuous abrasive wear.

• Extreme Surface Hardness: Reaching a formidable 58-62 HRC, the exterior easily deflects the high-friction scraping that quickly destroys standard untreated sleeves.

• Shock-Absorbing Core: While the surface is diamond-hard, the internal core remains highly ductile, acting as a microscopic shock absorber that prevents shattering during aggressive gear shifts or sudden torque spikes.

• Extended Operational Life: This "hard surface, tough core" philosophy ensures the synchronizer sleeve outlasts conventional alternatives, significantly extending the maintenance intervals for heavy-duty fleets.

Machining Precision & Surface Finish

The tactile feel of a perfectly executed gear shift is the direct result of uncompromising machining precision. Our production facility employs state-of-the-art CNC gear hobbing and grinding combinations to achieve an elite ISO 6-8 level of tooth profile accuracy.

This microscopic attention to detail guarantees that the sleeve meshes seamlessly with mating gears, eliminating the micro-vibrations that cause premature transmission failure and driver discomfort.

• Ultra-Smooth Surfaces: A surface roughness of Ra ≤ 1.6 μm ensures a glass-like finish, drastically reducing friction coefficients and enabling silent, fluid gear engagements.

• Advanced Shot Peening: By bombarding the metallic surface with high-velocity spherical media, we introduce beneficial residual compressive stresses, which elevates the component's fatigue life by an impressive 20% to 30%.

• Zero-Distortion Guarantee: Post-heat treatment dimensional stability is rigorously maintained, with tooth alignment errors strictly confined to ≤ 0.02mm, ensuring flawless assembly and maximum transmission efficiency.

OE-Level Compatibility

Procurement professionals understand that dimensional discrepancies lead to catastrophic assembly delays and inflated labor costs. The 1325333018 synchronizer sleeve is meticulously reverse-engineered and manufactured to exact OEM standard sizes, guaranteeing a perfect drop-in fit right out of the box.

Whether you are servicing a manual or automated transmission, this component integrates flawlessly into the existing architecture, restoring factory-level performance.

• Broad Application Spectrum: Perfectly engineered to accommodate the exacting tolerances of ZF heavy-duty truck and dump truck gearboxes, including the widely utilized 16S series transmissions.

• Seamless Integration: The precise spline geometry matches original factory specifications, allowing technicians to execute rapid, hassle-free installations without the need for custom modifications or forced fitting.

• Cost-Effective Restoration: By choosing a component with 100% OE-level compatibility, maintenance facilities can restore factory-fresh shifting performance while optimizing their operational budgets.

Quality Control & Testing

Consistency across large production batches is the hallmark of a reliable manufacturing partner. Our facility operates under stringent ISO9001 quality management protocols, utilizing fully automated CNC machining lines that eliminate human error from the production equation.

Every single synchronizer sleeve is subjected to a battery of diagnostic evaluations using advanced gear testing metrology equipment before it ever reaches the packaging department.

• First Article Inspection: Mass production never commences until the pre-production sample passes an exhaustive dimensional and metallurgical analysis.

• 100% Final Verification: We do not rely on random sampling; every individual sleeve undergoes a comprehensive final inspection prior to shipment to ensure absolute perfection.

• Defect-Free Assurance: From spline concentricity checks to ultrasonic flaw detection, our multi-tiered testing regimen guarantees that you receive components with uncompromising structural integrity.

• Traceable Manufacturing: Each production batch is meticulously documented, providing complete traceability and peace of mind for large-scale procurement operations.

Industrial Packaging & Fast Delivery

The journey from our manufacturing floor to your assembly line is fraught with environmental hazards. To combat the corrosive effects of oceanic transit, we employ an industrial-grade packaging strategy that ensures your components arrive in pristine, ready-to-install condition.

Coupled with our robust manufacturing infrastructure, we ensure that your supply chain remains uninterrupted, regardless of order volume or geographic location.

• Dual-Layer Protection: Each sleeve is meticulously coated in a specialized anti-rust compound and sealed in moisture-barrier inner packaging before being secured.

• Custom Wooden Crates: We utilize heavy-duty, environmentally friendly custom wooden boxes (50.00cm x 50.00cm x 60.00cm) that absorb transit shocks and prevent mechanical damage during global freight handling.

• Massive Production Capacity: With a monthly output of 5,000 units, our dual-factory setup easily accommodates sudden surges in procurement demands.

• Lightning-Fast Dispatch: Standard inventory orders are processed and shipped within a rapid 3 to 7-day window, while large-scale bulk manufacturing is reliably completed within 10 to 30 days.

Brand Strength & After-Sales Service

Partnering with an established manufacturer mitigates the inherent risks of global procurement. With over a decade of dedicated experience in the heavy-duty truck auto parts industry, the SINOASCEND brand has become synonymous with uncompromising reliability and engineering excellence.

We stand firmly behind the craftsmanship of our transmission components, offering comprehensive support that extends far beyond the initial delivery.

• Decade of Expertise: Since 2011, we have continuously refined our production techniques, exporting premium drivetrain solutions to highly demanding markets across Southeast Asia and Africa.

• Comprehensive Warranty: We provide a steadfast 1-year (12 months) warranty on our synchronizer sleeves, safeguarding your investment against any manufacturing anomalies.

• Custom OEM/ODM Solutions: Our engineering team fully supports sample-based customization, allowing distributors and large-scale repair networks to develop proprietary components tailored to specific regional requirements.

• Dedicated Multilingual Support: Our experienced technical support staff provides seamless communication in both English and Chinese, ensuring your inquiries are resolved with speed and precision.

Why Choose Us

In a market flooded with inconsistent aftermarket parts, selecting the right manufacturing partner is a critical strategic decision. We operate two expansive factories staffed by approximately 500 skilled production professionals, granting us total control over the entire manufacturing lifecycle. By sourcing directly from the manufacturer, you bypass unnecessary intermediary markups, securing highly competitive pricing without sacrificing an ounce of quality.

• Raw Material Supremacy: We exclusively procure high-grade raw materials, ensuring that the fundamental building blocks of our products are inherently superior.

• Holistic Product Ecosystem: Beyond synchronizer sleeves, we offer a comprehensive portfolio encompassing chassis series, rubber components, engine parts, and cabin accessories, streamlining your vendor management.

• Proven Global Footprint: With 50% of our exports serving the rigorous environments of Southeast Asia and another 50% dominating the African sector, our products are battle-tested in the world's most challenging terrains.

• Flexible Financial Terms: We accommodate diverse international trade requirements by accepting major currencies (USD, RMB) and flexible payment structures including T/T and L/C.

FAQ

• How does the shot peening process improve the lifespan of the synchronizer sleeve?

  Shot peening involves striking the surface of the machined steel with small spherical media at extremely high velocities. This process induces a layer of compressive residual stress on the exterior, which effectively closes microscopic surface anomalies and prevents them from propagating into cracks under heavy torque loads. Ultimately, this surface strengthening technique increases the fatigue life of the sleeve by a substantial 20% to 30%.

• Can this synchronizer sleeve handle the thermal stress of continuous heavy hauling?

  Absolutely. The sleeve is manufactured from premium high-strength alloy steel and features an optimized air-cooled design. Combined with its precise ISO 6-8 tooth profile accuracy, it drastically minimizes friction-induced heat. This allows for rapid thermal dissipation even during continuous, aggressive gear shifting under a maximum 1000 lb-ft torque load, preventing the metal from warping or binding.

• What measures are taken to ensure the dimensional stability of the sleeve after heat treatment?

  We utilize advanced, computer-controlled carburizing and carbonitriding furnaces that regulate temperature fluctuations to exact parameters. Post-treatment, every piece is meticulously inspected using precision metrology tools to ensure the tooth alignment error remains strictly ≤ 0.02mm. This rigorous standard guarantees zero distortion and a perfect, frictionless fit during transmission assembly.

• Are you capable of manufacturing custom synchronizer sleeves based on our proprietary designs?

  Yes, our robust R&D department and fully equipped CNC production lines fully support OEM and ODM customization. You can provide us with technical drawings, CAD files, or physical samples, and our engineering team will reverse-engineer and manufacture the components to meet your exact specifications, ensuring they perform flawlessly within your specific drivetrain architecture.

• What is the procedure if we require a sample before committing to a large-volume order?

  We highly encourage sample evaluation to verify our stringent quality standards. We offer pre-production samples completely free of charge; the requesting party is only responsible for covering the international freight costs. Once the sample is tested and approved by your technical team, we proceed with mass production, strictly adhering to that exact quality benchmark for the entire batch.
