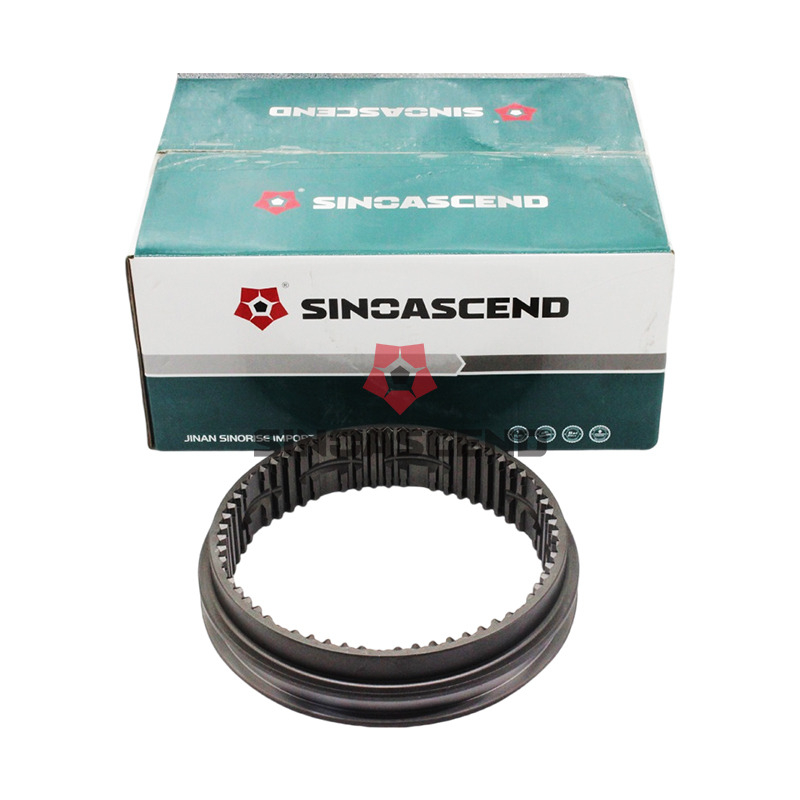

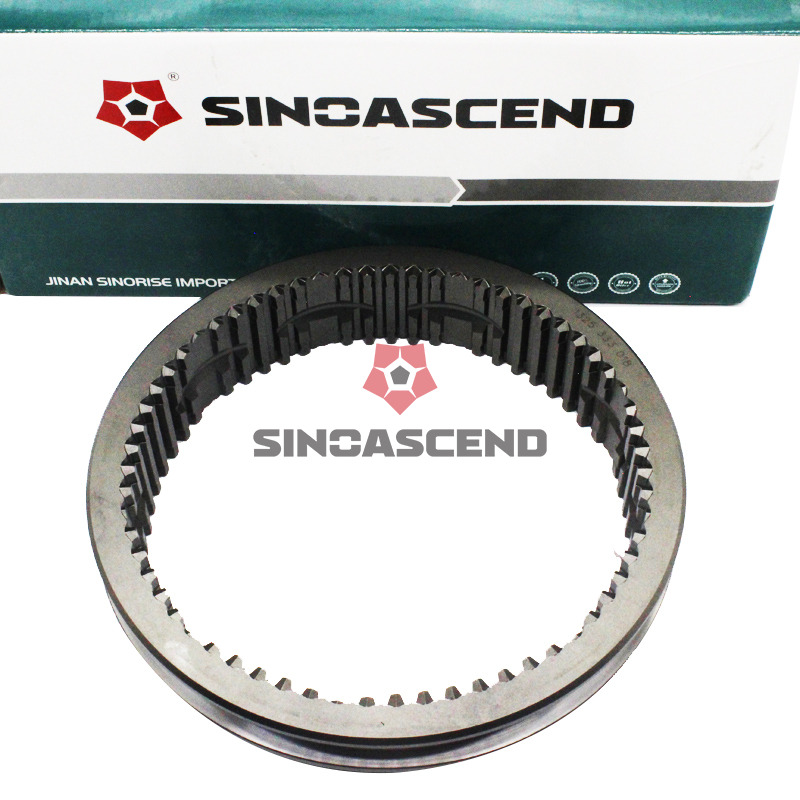

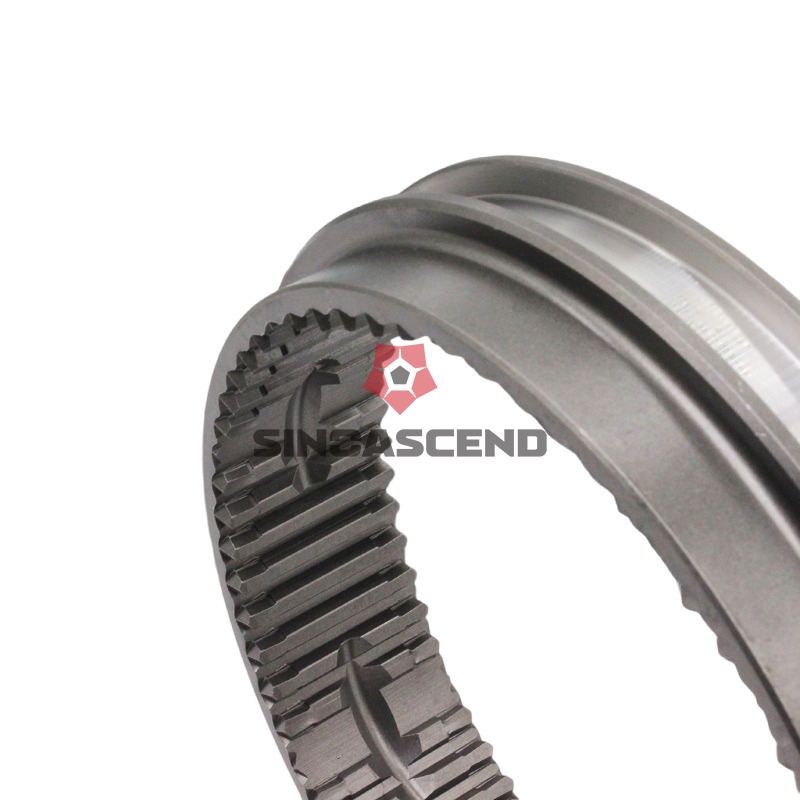

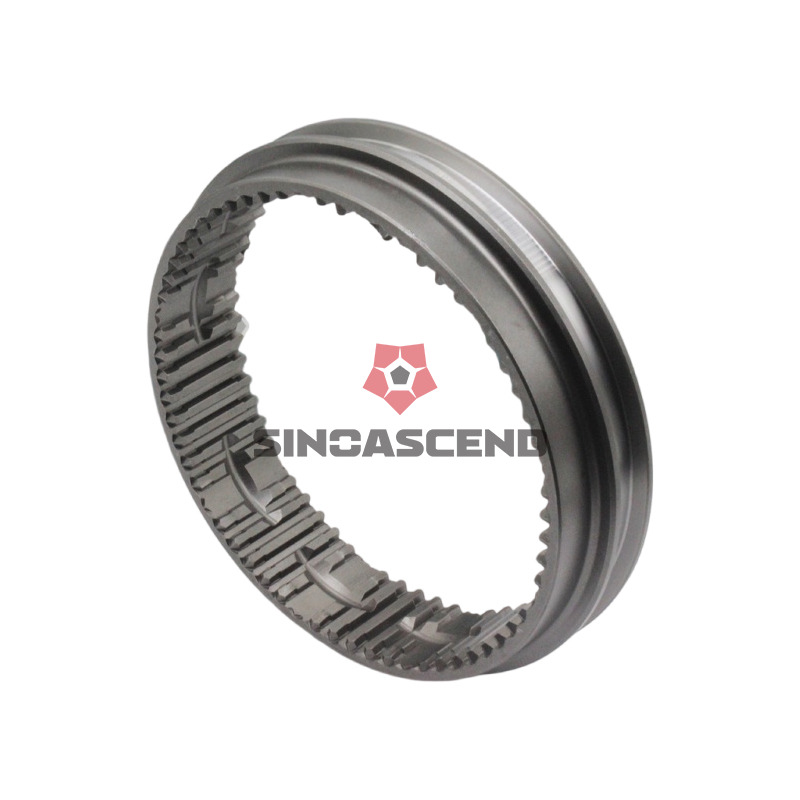

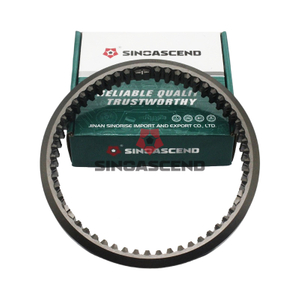

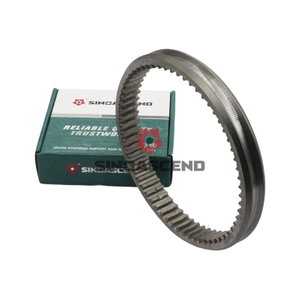

ZF Synchronizer Sleeve for Truck Gearboxes

Product Overview

As a premier manufacturer and trusted supplier of commercial vehicle drivetrain components, we present this precision-engineered transmission synchronizer sleeve. Designed specifically for heavy-duty applications, this component ensures seamless mechanical engagement and optimal torque transfer for demanding fleet operations.

• Engineered for 7-speed commercial gearboxes with a robust 1000 lb-ft torque capacity.

• Constructed from high-grade triple-plate clutch steel for maximum durability under load.

• Manufactured to exact OEM dimensional standards for flawless integration.

• Features an advanced air-cooled design to maintain optimal operating temperatures.

Product Description

The transmission synchronizer sleeve stands as the critical bridge between engine power and drivetrain execution in heavy-duty commercial vehicles. When an operator shifts gears, the internal components must align with absolute mathematical precision. This sleeve is meticulously machined to deliver that exact alignment, eliminating the harsh grinding and mechanical hesitation often associated with inferior aftermarket parts. The tactile feedback provided by this component is distinctively crisp, offering operators a smooth, authoritative shift that translates to better vehicle control and significantly reduced driver fatigue during long-haul or rigorous construction operations.

Beyond the immediate sensory improvements in the cabin, the true value of this synchronizer sleeve lies in its exceptional longevity and operational reliability. Forged from high-strength alloy steel, it boasts an incredibly dense molecular structure that resists the immense shearing forces generated by dump trucks and heavy commercial fleets. The visually flawless surface, achieved through rigorous honing and grinding processes, significantly reduces friction. This near-silent operation not only minimizes gearbox acoustic emissions but also drastically lowers the thermal load on the transmission fluid. By preventing premature wear and tear, this component directly reduces fleet maintenance schedules, keeping commercial vehicles on the road and out of the repair bay.

Product Specifications

Key Features & Highlights

Our transmission synchronizer sleeves are engineered to surpass standard operational expectations. By integrating advanced metallurgical science with state-of-the-art machining, we deliver a component that fundamentally enhances drivetrain stability and protects your capital investments.

• Exceptional Dimensional Stability: Following rigorous heat treatment protocols, the deformation rate is strictly controlled. With a tooth alignment error of ≤ 0.02mm, the sleeve guarantees a perfect fit, preventing assembly complications and maximizing transmission efficiency.

• Optimized Material Compatibility: We carefully balance hardness and toughness based on the specific load requirements of heavy-duty gears. This prevents the common pitfalls of core softening or surface brittleness under extreme mechanical stress.

• Advanced Surface Strengthening: Utilizing precise carburizing and carbonitriding techniques, the surface achieves a formidable hardness of 58-62HRC, providing a robust shield against constant friction.

• Multi-Process Collaboration: Every unit undergoes a strictly monitored journey from raw forging through rough machining, thermal treatment, and final precision grinding, ensuring no detail is overlooked.

This meticulous attention to detail ensures that fleet operations experience fewer breakdowns, smoother gear transitions, and a significant reduction in overall maintenance expenditures over the vehicle's lifecycle.

Advanced Engineering & Manufacturing Excellence

To meet the demanding requirements of commercial procurement specialists and heavy-duty vehicle manufacturers, our production processes are defined by uncompromising technical standards.

• Premium Material & Heat Treatment: Forged from high-strength alloy steels such as 20CrMnTi and 42CrMo, this synchronizer sleeve undergoes an advanced carburizing and carbonitriding heat treatment process. This elevates the surface hardness to an impressive 58-62 HRC while achieving an infiltration layer depth of 0.8-1.2mm. This dual-layer structural integrity ensures extreme surface wear resistance while maintaining a tough, resilient core, completely eliminating the risks of surface embrittlement or core softening under high-torque conditions.

• High Precision & Low Noise: We strictly adhere to ISO 6-8 level tooth profile accuracy standards. Through a synergistic combination of CNC machining, gear hobbing, shaving, and honing, the surface roughness is refined to Ra ≤ 1.6 μm. This microscopic level of smoothness, combined with a post-heat treatment tooth alignment error of ≤ 0.02mm, guarantees incredibly fluid gear meshing. The result is a dramatic reduction in gearbox acoustic emissions and a measurable increase in mechanical transmission efficiency.

• Surface Strengthening & Fatigue Resistance: To combat the relentless stress of heavy payloads, we employ professional shot peening technology. This critical step introduces a layer of residual compressive stress onto the component's surface, effectively neutralizing the formation and propagation of micro-cracks. This specialized treatment extends the fatigue life of the synchronizer sleeve by 20% to 30%, making it the ultimate solution for dump trucks operating in the most punishing environments.

• OEM Compatibility & Direct Replacement: Engineered to mirror exact OEM dimensional blueprints, this component serves as a flawless direct replacement for ZF transmission systems (including part number 1325333018). It requires absolutely no modifications for installation, seamlessly integrating into the drivetrains of various commercial vehicles and construction machinery. This provides supply chain directors with a highly cost-effective, premium aftermarket solution that performs identically to original equipment.

• Strict Quality Control & Testing:

  Operating under a rigorous ISO9001-certified quality management system, every stage of production is heavily scrutinized to guarantee original-factory reliability. Our testing protocols include:

  • Material Verification: Initial metallurgical analysis of all raw alloy steels to ensure structural purity.

  • Pre-Production Approval: Mandatory sample validation prior to any mass manufacturing run.

  • Final Metrology: 100% final inspection of tooth profile accuracy and surface hardness before dispatch.

• Capacity, Packaging & Fast Delivery:

  Supported by a robust production capacity of 5,000 pieces per month, we maintain ample inventory of standard models to facilitate rapid 7-15 day dispatch. Recognizing the rigors of international transit, our packaging system provides multi-layered protection:

  • Anti-rust inner linings to prevent oxidation during sea freight.

  • Impact-absorbing foam and premium corrugated boxes to eliminate mechanical shock.

  • Reinforced, fumigation-free customized wooden crates that comply with global shipping standards.

Why Choose Us

Partnering with us means securing a reliable, high-capacity source for premium commercial vehicle components. With over a decade of dedicated expertise in the heavy-duty auto parts industry, we have built a reputation based on engineering integrity and supply chain stability.

• Expansive Manufacturing Footprint: Operating across two state-of-the-art facilities with a dedicated workforce of approximately 500 skilled professionals, we possess the scale to fulfill large-volume requirements without compromising on precision.

• Uncompromising Raw Materials: We source only the highest-grade alloy steels, ensuring that the fundamental building blocks of our products are engineered to extend service life and withstand extreme commercial use.

• Proven Global Reach: With a strong export presence, particularly across Southeast Asia and Africa, we understand the logistical and environmental demands of diverse global markets, ensuring our parts perform flawlessly in any climate.

• Flexible Customization: We offer comprehensive sample-based customization services, allowing clients to tailor specifications, materials, and packaging to align perfectly with their specific brand identity and engineering requirements.

• Dedicated Support: Our multilingual support team ensures clear, accurate communication throughout the entire procurement cycle, from initial inquiry to post-delivery technical support.

FAQ

Below are detailed answers to the most common inquiries we receive from procurement directors and technical managers regarding our transmission components.

• What is the standard lead time for bulk orders of the synchronizer sleeve?

  For items currently in our extensive inventory, dispatch occurs within 3 to 7 days. For larger volume requirements or non-stock items, our streamlined production process allows us to complete and ship orders within 20 to 30 days, depending on the exact quantity and customization specifications.

• How do you ensure the dimensional accuracy and quality of each batch?

  Quality is engineered into every step. We mandate the approval of a pre-production sample before any mass manufacturing begins. Furthermore, our quality assurance team conducts a 100% final inspection using advanced metrology equipment to verify ISO 6-8 level tooth profile accuracy and surface hardness before any shipment is authorized.

• Can the packaging be customized to reflect our corporate branding?

  Absolutely. While our standard packaging utilizes high-end cardboard and robust, environmentally friendly wooden boxes designed for maximum transit security, we fully support bespoke packaging solutions. We can incorporate your branding, specific labeling requirements, and custom dimensions to enhance your market presentation.

• Are samples available for engineering evaluation prior to a large-scale commitment?

  Yes, we encourage technical evaluations. We provide complimentary product samples so your engineering team can verify the material composition, surface roughness (Ra ≤ 1.6 μm), and overall build quality. The client is only responsible for the associated freight charges.

• What payment and shipping terms do you support for international transactions?

  To facilitate smooth global trade, we accept payments via Telegraphic Transfer (T/T) and Letter of Credit (L/C) in both USD and RMB. Our standard delivery terms are highly efficient, and we primarily utilize secure sea freight to ensure cost-effective delivery for heavy metallic components.
