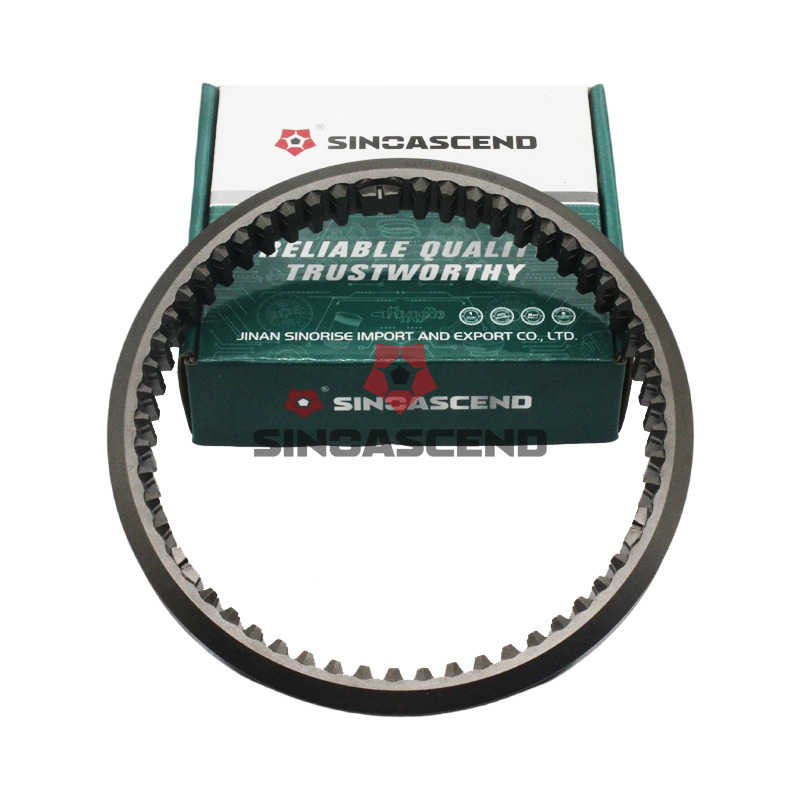

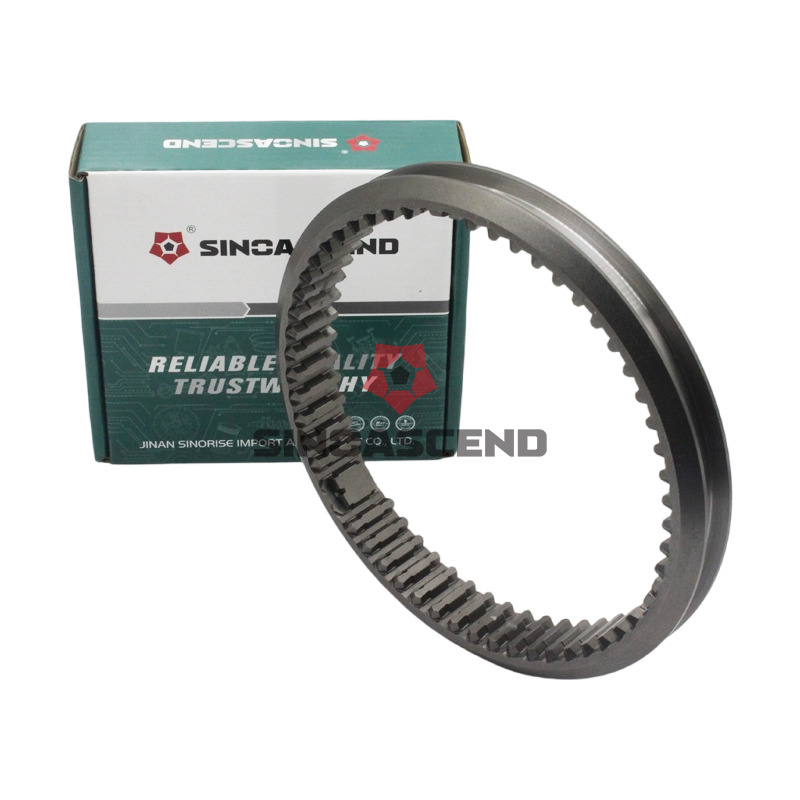

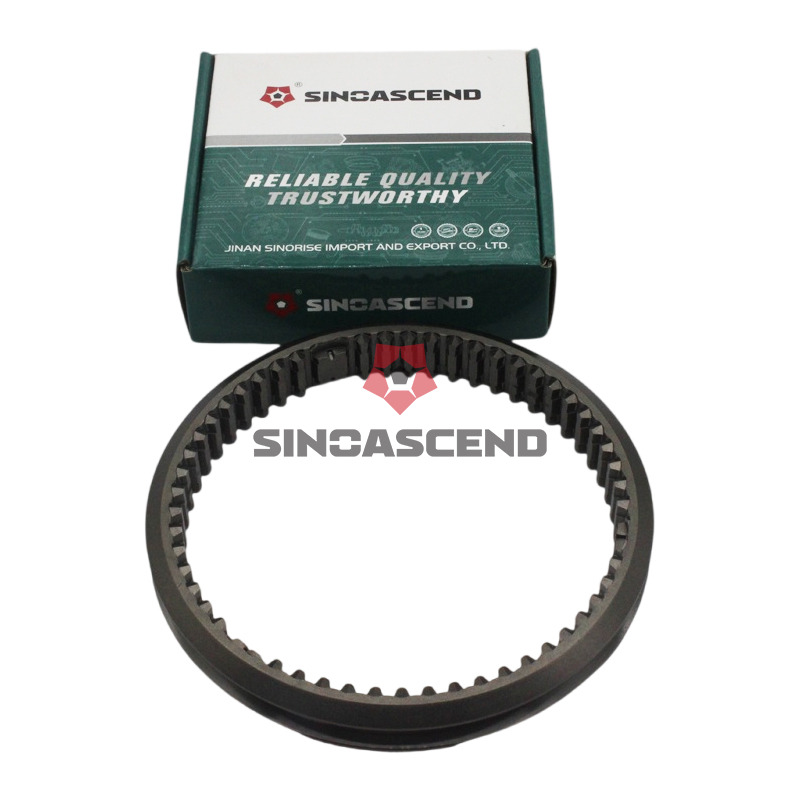

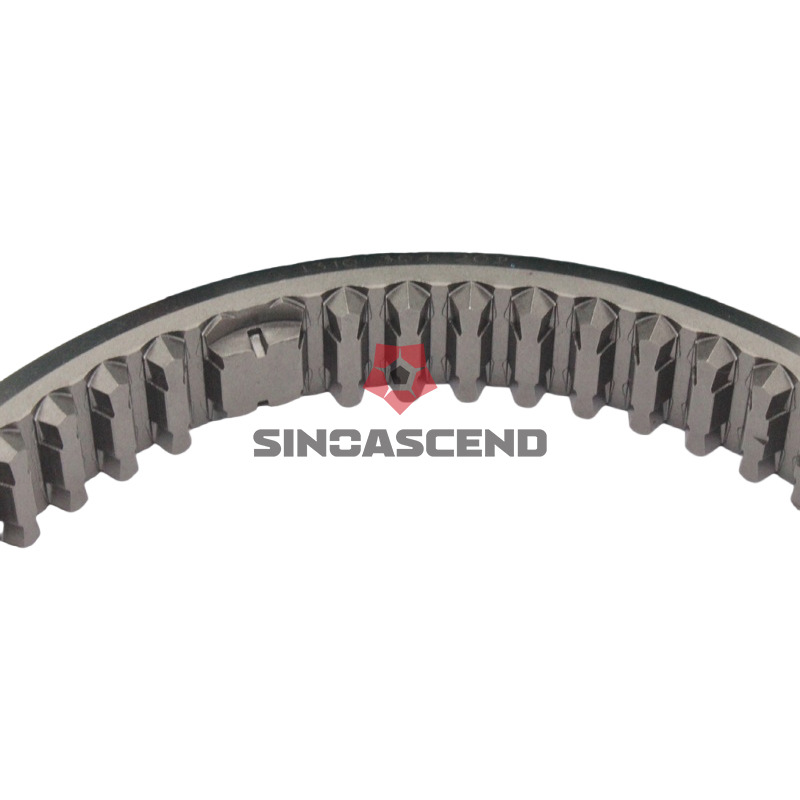

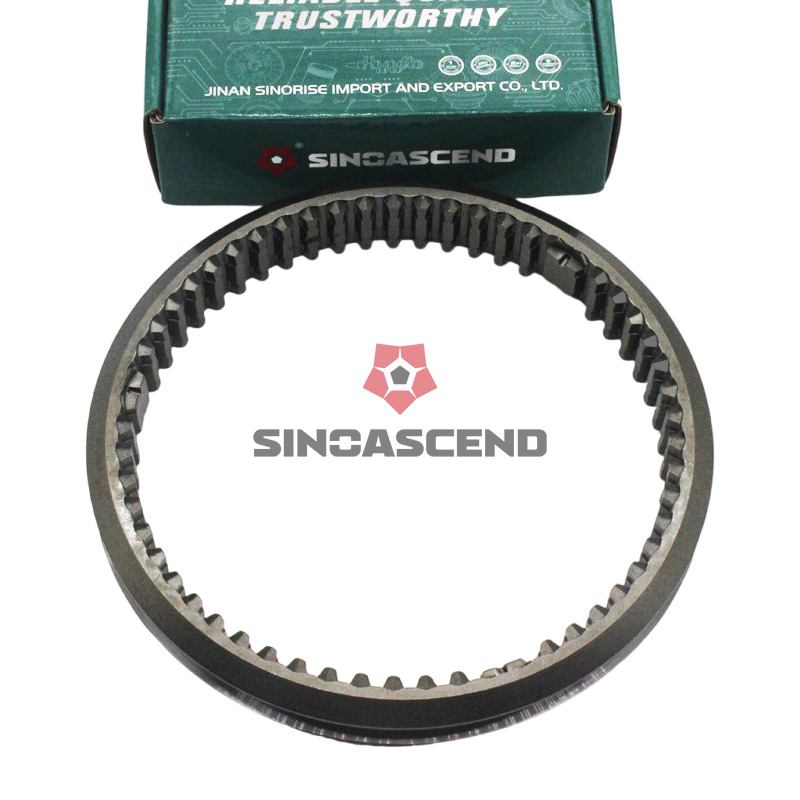

ZF Synchronizer Sleeve for Truck Gearboxes

 Company Profile

The Transmission Synchronizer Sleeve is meticulously engineered to transform the shifting dynamics of heavy-duty dump trucks. When navigating steep inclines or managing massive payloads, operators rely on the tactile, crisp engagement that only a precision-machined synchronizer can provide. By utilizing triple plate clutch steel, this component absorbs the immense mechanical stress generated by a 1000 lb-ft torque capacity, translating it into smooth, vibration-free gear transitions. The distinct lack of grinding noises and the solid, reassuring click during gear shifts reflect the exceptional ISO 6-8 level tooth profile accuracy. Operating seamlessly within an air-cooled system, the sleeve maintains thermal stability even during continuous, grueling operational cycles. Fleet managers will notice an immediate reduction in transmission wear and a significant improvement in overall drivetrain efficiency. This is not just a replacement part; it is a vital mechanical upgrade that minimizes vehicle downtime, reduces maintenance overhead, and keeps commercial fleets moving reliably across the most demanding terrains.

Key Features & Highlights

Upgrading your fleet's transmission system requires components that do more than just fit; they must actively enhance the vehicle's operational capabilities. This synchronizer sleeve is engineered with several distinct advantages that directly impact your bottom line by reducing maintenance frequency and improving shifting reliability.

• Acoustic Excellence: The meticulously refined tooth surface roughness (Ra ≤ 1.6 μm) ensures a whisper-quiet meshing process, drastically cutting down the harsh mechanical grinding sounds often associated with heavy-load shifting.

• Thermal Resilience: Designed to operate flawlessly within air-cooled systems, the sleeve dissipates friction-induced heat rapidly, preventing the metal from warping or losing its structural integrity during long hauls.

• Unmatched Load Bearing: Capable of managing a staggering 1000 lb-ft torque capacity, this component guarantees that heavy-duty dump trucks can power through challenging environments without the risk of gear slippage.

• Seamless Integration: Crafted to exact OEM standard sizes, mechanics will experience a frictionless installation process, eliminating the need for time-consuming modifications and getting vehicles back on the road faster.

Material & Heat Treatment

The foundation of any superior transmission component lies in its metallurgical composition. We utilize high-grade triple plate clutch steel, specifically chosen for its exceptional tensile strength and resistance to mechanical shearing under extreme pressure.

• Advanced Carburizing Process: By subjecting the steel to precise carburizing and carbonitriding, we achieve a critical infiltration depth of 0.8-1.2mm. This creates an armor-like exterior that withstands relentless friction.

• Optimized Surface Hardness: The specialized heat treatment elevates the surface hardness to a formidable 58-62 HRC, ensuring the gear teeth remain sharp and fully intact even after millions of shifting cycles.

• Core Ductility Preservation: While the exterior is exceptionally hard, the induction hardening process ensures the inner core remains tough and flexible. This perfect balance prevents the metal from becoming brittle, allowing it to absorb sudden shock loads without fracturing.

Machining Precision & Dimensional Stability

Precision engineering is not just a buzzword; it is the critical factor that determines whether a transmission operates smoothly or destroys itself from the inside out. Our manufacturing process involves a complex, multi-stage collaboration of forging, rough machining, and precision grinding to achieve absolute exactness.

• ISO 6-8 Level Accuracy: Every single tooth profile is cut to meet stringent international standards, guaranteeing that the sleeve meshes perfectly with corresponding gears without hesitation, binding, or excessive wear.

• Micro-Level Smoothness: By utilizing advanced gear hobbing and shaving techniques, the surface roughness is kept strictly at or below Ra 1.6 μm, providing a glass-like finish that significantly minimizes friction coefficients.

• Thermal Deformation Control: Post-heat treatment dimensional shifts are tightly regulated. We maintain a tooth alignment error of ≤ 0.02mm, ensuring that the sleeve retains its exact geometric shape, which is vital for maintaining high transmission efficiency and effortless assembly.

Surface Strengthening & Fatigue Resistance

Heavy-duty commercial vehicles subject their transmissions to brutal, continuous stress. To combat the inevitable metal fatigue, we employ state-of-the-art surface strengthening technologies that actively extend the operational lifespan of the synchronizer sleeve, keeping your vehicles out of the repair shop.

• Shot Peening Technology: We bombard the component's surface with high-velocity spherical media. This process introduces beneficial residual compressive stress into the metal, effectively closing micro-cracks before they have the chance to propagate.

• Extended Lifespan: The introduction of these compressive stresses directly translates to a 20% to 30% increase in overall fatigue life, meaning significantly fewer replacements over the total lifespan of the truck.

• Heavy-Load Endurance: When navigating steep gradients with a full payload, the synchronized gears face immense pressure. Our strengthened surface ensures that the sleeve can handle these peak stress moments repeatedly without yielding or deforming.

Compatibility & Application

Procurement professionals understand that a part is only valuable if it fits perfectly the first time. The 1295304002 synchronizer sleeve is engineered to eliminate the guesswork from fleet maintenance, ensuring rapid deployment and reliable performance across your entire operation.

• Targeted Vehicle Fitment: Explicitly designed for heavy-duty dump trucks and commercial vehicles utilizing 7-speed manual transmissions, ensuring a flawless mechanical match for demanding drivetrains.

• OEM Standard Dimensions: Manufactured to replicate original equipment specifications down to the micron. This guarantees a 100% seamless installation, drastically reducing labor hours and frustration in the repair shop.

• Premium Replacement Value: Serving as a high-tier aftermarket component, it allows fleet managers to restore original shifting performance without the inflated costs associated with dealership-sourced parts, effectively lowering the total cost of ownership.

Production Capacity & Quality Control

Reliability in supply is just as crucial as the reliability of the part itself. With over a decade of manufacturing expertise, our infrastructure is built to support large-scale, continuous procurement demands while maintaining uncompromising, zero-defect quality standards.

• Robust Manufacturing Output: Operating across two dedicated facilities with a highly skilled workforce of approximately 500 personnel, we comfortably maintain a steady production capacity of 5,000 pieces per month to fulfill volume requirements.

• Pre-Production Verification: We never leave quality to chance. Before any mass manufacturing begins, meticulous pre-production samples are created and rigorously tested to confirm all specifications are flawlessly met.

• Zero-Defect Policy: Every single synchronizer sleeve undergoes a comprehensive final inspection prior to packaging. This unwavering commitment to quality assurance ensures that every component arriving at your facility is ready for immediate deployment.

Packaging & Logistics

The journey from our manufacturing floor to your assembly line or warehouse is fraught with potential hazards. We have developed a comprehensive packaging and logistics strategy to ensure your components arrive in pristine condition, completely free from environmental or physical damage.

• Premium Protective Packaging: Each sleeve is housed within our unique, high-end cardboard boxes and further secured in customized wooden crates measuring 50.00cm * 50.00cm * 60.00cm, providing maximum impact resistance.

• Corrosion Prevention: The packaging materials are specifically chosen to create an impenetrable barrier against moisture and salt air during long-haul sea freight, completely eliminating the risk of rust upon arrival.

• Efficient Dispatch: We understand that time is revenue. In-stock items are rapidly dispatched within 3 to 7 days, while larger, non-stock production runs are reliably fulfilled within a strict 20 to 30-day window.

• Flexible Transactions: To seamlessly accommodate global procurement protocols, we support standard sea shipping alongside secure, mainstream payment terms including T/T and L/C.

After-sales & Manufacturer Strength

Partnering with us means gaining access to a decade of specialized expertise in the heavy-duty vehicle component sector. We do not just supply standalone parts; we provide comprehensive drivetrain solutions backed by tangible guarantees and exceptional engineering support.

• Extended Warranty Protection: We stand firmly behind the durability of our engineering by offering a solid 1-year warranty on the synchronizer sleeve, providing total peace of mind and financial protection for your procurement investment.

• Custom Engineering Solutions: Beyond our standard product lines, our advanced R&D capabilities allow us to support custom sample manufacturing. If your fleet requires specific modifications, our engineering team can deliver tailored solutions.

• Global Market Proven: With a strong export footprint across Southeast Asia and Africa, our components have been rigorously tested and proven in some of the most grueling, high-temperature, and heavy-load environments on the planet.

Selecting the right component source is a critical strategic decision that impacts vehicle uptime and overall operational profitability. Our manufacturing approach is designed to provide maximum value, transparency, and mechanical reliability.

• Direct Manufacturer Advantage: By eliminating intermediaries, we provide highly competitive pricing structures without ever compromising on raw material quality or the precision of the manufacturing process.

• Deep Industry Expertise: With over 10 years deeply rooted in the auto parts industry, our technical teams possess an intimate understanding of transmission dynamics and common failure points, allowing us to engineer vastly superior solutions.

• Uncompromising Material Selection: We refuse to cut corners. By exclusively utilizing high-grade raw materials, we significantly extend the service life of our products, directly reducing your long-term maintenance expenditures.

• Responsive Communication: Our dedicated support teams are fluent in both English and Chinese, ensuring that technical specifications, logistics updates, and custom requirements are communicated flawlessly and executed promptly.

How does the ISO 6-8 level tooth profile accuracy impact transmission performance?

Achieving an ISO 6-8 accuracy level ensures that the synchronizer sleeve meshes with absolute precision. This micro-level exactness eliminates the harsh grinding and vibration typically experienced during heavy-load shifts, resulting in a smoother driving experience and significantly reducing the mechanical wear on the entire gear train over time.

Can this synchronizer sleeve handle the continuous strain of steep incline hauling?

Absolutely. Engineered with a robust 1000 lb-ft torque capacity and fortified through advanced carburizing and induction hardening, this component is specifically designed to withstand the immense shearing forces generated when heavy-duty dump trucks navigate steep gradients under a full payload.

What measures are taken to prevent the steel from becoming brittle after heat treatment?

We employ a highly controlled, dual-stage heat treatment process. While carburizing pushes the surface hardness to 58-62 HRC for extreme wear resistance, the core of the steel undergoes induction hardening tailored to maintain its natural ductility. This critical balance allows the sleeve to absorb heavy shock loads without shattering or cracking.

How does shot peening technology extend the operational life of the sleeve?

Shot peening involves bombarding the metal surface with small spherical media at high velocities. This process alters the mechanical properties of the surface by introducing residual compressive stress. These stresses act as a physical barrier, preventing microscopic cracks from forming and propagating under tension, thereby increasing the fatigue life by 20% to 30%.

What is the procedure for verifying the exact fitment for our specific fleet requirements?

We strongly encourage pre-production verification to ensure total confidence. We offer free sample provisions (with freight covered by the recipient) so your engineering team can physically inspect the OEM standard dimensions, test the material hardness, and confirm 100% seamless integration into your existing 7-speed manual transmissions before committing to a larger volume order.
