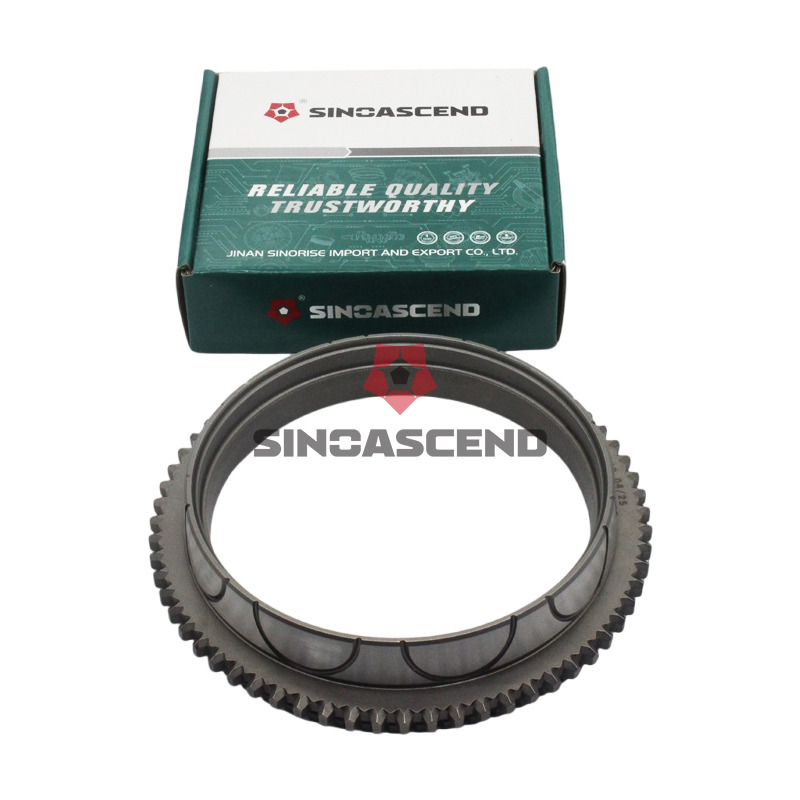

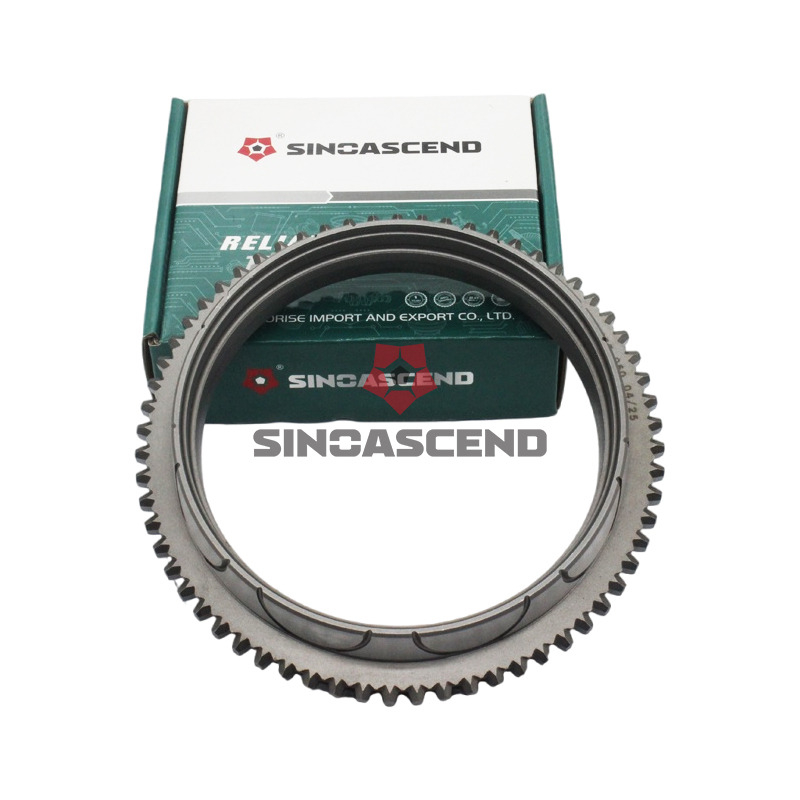

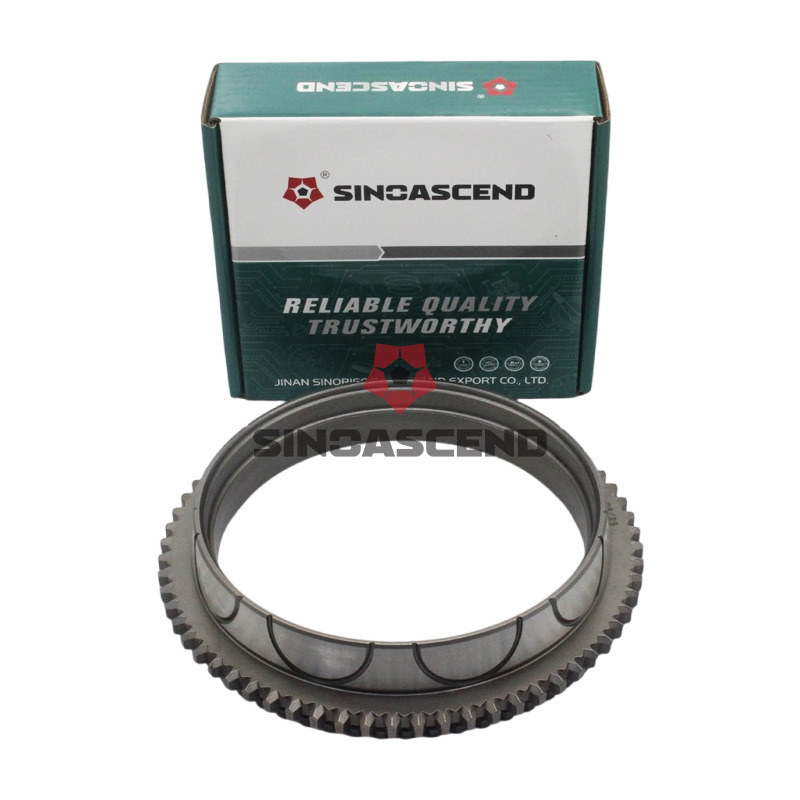

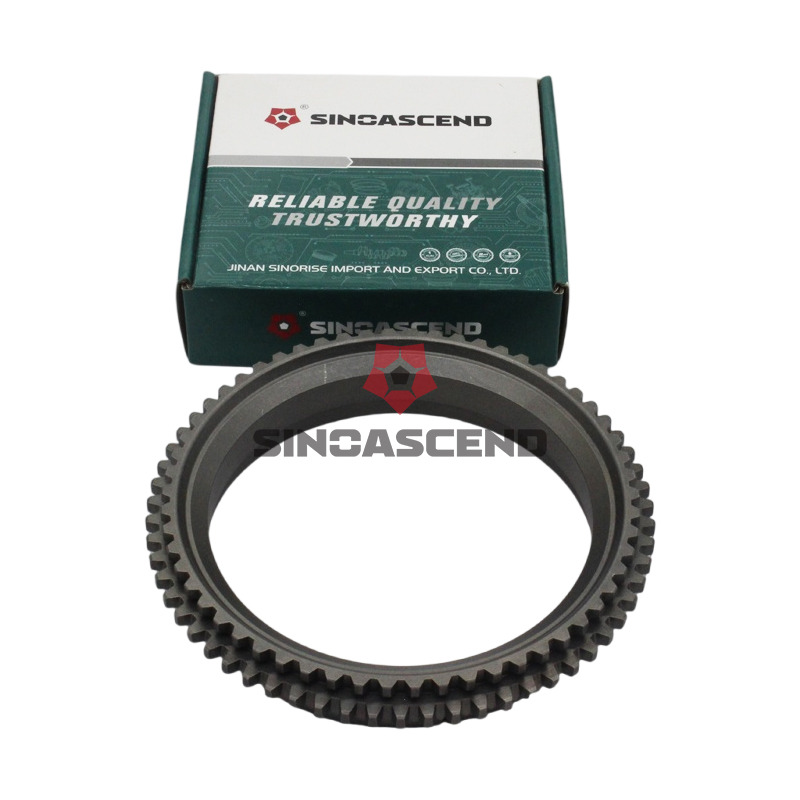

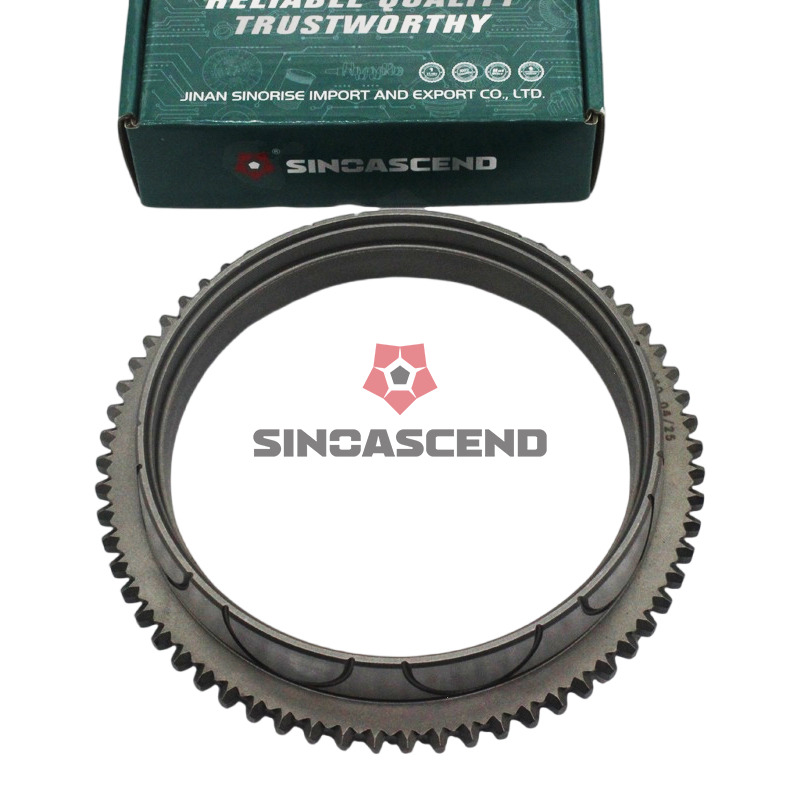

Heavy Duty Synchronizer Cone for Trucks

Product Overview

As a leading manufacturer and supplier of commercial vehicle components, we present this premium synchronizer cone. Engineered for heavy-duty transmissions, this component ensures seamless gear shifts and prolonged operational life in demanding environments.

• Designed for 7-speed torque converter manual transmissions.

• Forged from high-strength steel with advanced heat treatment.

• Engineered to withstand up to 1000 lb-ft of torque.

• Ideal for dump trucks and severe-duty applications.

Product Description

The 1296333050 synchronizer cone stands as a critical intervention for transmission systems plagued by harsh shifting and premature wear under extreme payloads. When integrating this component into a heavy-duty drivetrain, operators immediately notice a profound transformation in gear engagement—shifts become fluid, precise, and devoid of the abrasive grinding that degrades transmission health. Crafted with meticulous attention to metallurgical integrity, the steel surface possesses a distinct, micro-finished texture that speaks to its ISO 6-8 level tooth profile accuracy. This ultra-smooth finish, measuring Ra ≤ 1.6 μm, minimizes friction and significantly dampens acoustic resonance within the gearbox, resulting in a remarkably quieter cabin environment. By facilitating optimal synchronization between the gear and the shaft, this component eliminates the jarring mechanical shock typically experienced during heavy hauling. Fleet managers and procurement directors will find that this synchronizer cone dramatically reduces the frequency of transmission overhauls, transforming a routine maintenance vulnerability into a robust pillar of vehicular reliability. The tactile precision of the forged steel, combined with its formidable thermal resilience, ensures that even under the relentless strain of steep inclines and maximum cargo capacities, the transmission maintains peak operational efficiency.

Product Specifications

Key Features & Highlights

Upgrading your transmission system requires components that do more than just fit; they must actively enhance the drivetrain's resilience. This synchronizer cone is engineered to resolve the most common points of failure in severe-duty transport vehicles, ensuring your fleet remains on the road and out of the repair bay.

• Elimination of Gear Clash: By matching rotational speeds with absolute precision, it prevents the destructive grinding that strips gear teeth, safeguarding the entire transmission architecture.

• Thermal Distortion Resistance: The optimized steel matrix dissipates heat rapidly, preventing the warping and dimensional shifts that typically occur during prolonged, high-friction descents.

• Optimized Power Transfer & Acoustic Dampening: Working in tandem with triple plate clutch systems, it guarantees maximum engine torque is translated smoothly while the refined surface topography naturally breaks up vibrational frequencies, lowering gearbox decibel output.

• Extended Maintenance Intervals: The robust construction drastically slows the rate of wear, allowing fleet operators to extend the time between scheduled transmission teardowns, thereby maximizing asset utilization.

Advanced Engineering & Technical Dimensions

• Material & Heat Treatment: To combat the relentless friction of heavy hauling, this component utilizes high-strength steel subjected to rigorous carburizing or carbonitriding processes. This metallurgical refinement achieves a formidable surface hardness of 58-62 HRC while driving the infiltration layer to a depth of 0.8-1.2 mm. This perfect equilibrium between an impenetrable exterior and a ductile core prevents both core softening and surface embrittlement, drastically extending the operational lifespan under severe load conditions.

• High Precision Manufacturing: Transmission efficiency relies on microscopic exactness. Our manufacturing protocol strictly adheres to ISO 6-8 level tooth profile accuracy, achieving a mirror-like surface roughness of Ra ≤ 1.6 μm. Post-heat treatment dimensional stability is meticulously controlled, keeping tooth alignment errors strictly below 0.02mm. This precision ensures seamless, high-speed meshing, virtually eliminating parasitic friction and mechanical noise.

• Surface Strengthening Technology: Beyond standard forging and machining, we employ advanced shot peening techniques. This process bombards the metal surface to induce beneficial residual compressive stresses. As a result, the fatigue life of the synchronizer cone is amplified by 20% to 30%, making it exceptionally resilient against the cyclical stresses inherent in dump truck operations.

• Compatibility & Fitment: Engineered to flawless OEM dimensional standards (OE Number: 1296333050), this component offers drop-in compatibility for a wide array of heavy-duty and dump truck transmissions, including widely used ZF architectures. By providing exact cross-reference data, we eliminate the guesswork for procurement teams and technicians, ensuring a seamless replacement process that minimizes assembly errors and bay time.

• Performance & Load Capacity: Built specifically for the punishing realities of commercial transport, this cone effortlessly supports 7-speed transmission architectures and manages formidable torque loads up to 1000 lb-ft. When paired with high-efficiency triple plate clutches, it ensures that power distribution remains uninterrupted and gear transitions remain fluid, even when navigating steep gradients with maximum payloads.

• Quality Control & Supply Chain: Consistency is the bedrock of reliable procurement. We enforce a zero-defect policy, mandating pre-production sample approvals and 100% final inspections before any shipment leaves the facility. With a robust monthly production capacity of 5,000 units and rapid 3-7 day dispatch for standard inventory, we provide an unbreakable supply chain foundation for large-scale operations.

• Industrial Packaging & Safety: Precision components demand fortress-like protection during transit. Each unit is secured within customized, high-end corrugated cartons and further encased in OEM-standard thickened wooden boxes. This dual-layer, eco-friendly packaging strategy completely neutralizes the risk of impact damage during rough maritime or cross-border logistics, guaranteeing the parts arrive in pristine, ready-to-install condition.

• After-Sales & Customization: We stand behind our engineering with a comprehensive 1-year warranty. Recognizing that different operational environments require tailored solutions, we offer extensive OEM manufacturing and sample-based customization services. Furthermore, our technical support extends to professional installation guidance, helping operators drastically lower their long-term maintenance and running costs.

Why Choose Us

Sourcing critical drivetrain components requires a partner who understands the high stakes of commercial vehicle maintenance. We do not merely produce parts; we engineer reliability that directly impacts your operational bottom line. Our manufacturing ecosystem is built around the specific needs of large-scale procurement, focusing on longevity, precision, and seamless integration.

• Decade of Expertise: With over ten years dedicated strictly to commercial auto parts, our deep-rooted industry knowledge translates into superior metallurgical choices and refined manufacturing protocols.

• Uncompromising Raw Materials: We bypass standard-grade metals, exclusively sourcing premium alloys that inherently resist thermal degradation and mechanical shearing.

• Scalable Manufacturing Power: Operating two state-of-the-art facilities with a dedicated workforce of 500 professionals, we possess the agility to fulfill massive volume requirements.

• Zero-Defect Assurance: Every component must pass rigorous microscopic and dimensional audits before leaving our facility, ensuring absolute consistency across large orders.

• Global Logistics Proficiency: Our export teams are masters of international freight, ensuring that your vital components clear customs and arrive precisely on schedule.

• Collaborative Development: We serve as an extension of your engineering team, offering bespoke customization based on your specific samples to solve unique drivetrain challenges.

FAQ

• How does the Ra ≤ 1.6 μm surface roughness impact the transmission's daily operation?

  This ultra-fine surface finish significantly reduces the friction coefficient between mating gears. In practical terms, this translates to less heat generation during shifts, smoother gear engagement, and a noticeable reduction in transmission fluid degradation over time.

• Can this synchronizer cone withstand the thermal stress of continuous downhill hauling?

  Absolutely. The combination of our specialized steel alloy and the deep carburizing process ensures the component maintains its structural integrity even at elevated temperatures. It is specifically designed to resist the warping and surface glazing that typically occur during heavy, continuous braking and downshifting.

• What measures are taken to ensure dimensional stability after heat treatment?

  We utilize tightly controlled atmospheric furnaces and precise quenching techniques that lock the molecular structure into place. By keeping tooth alignment errors strictly below 0.02mm, we guarantee that the cone will fit perfectly onto the shaft without requiring aggressive force or post-delivery machining.

• How does the shot peening process specifically benefit fleet operators?

  Shot peening introduces a layer of compressive stress on the surface of the metal, acting as a microscopic shield against crack initiation. For fleet operators, this means a 20% to 30% increase in the component's fatigue life, directly reducing the frequency of catastrophic transmission failures and costly vehicle downtime.

• What is the protocol if we require a custom dimension for a non-standard gearbox?

  We offer comprehensive sample-based customization. Your engineering team can provide a physical sample or detailed CAD drawings, and our R&D department will reverse-engineer the component. We will then produce a pre-production prototype for your rigorous testing before moving into full-scale manufacturing.

• How do you protect the components from oxidation and physical damage during sea freight?

  Every synchronizer cone is treated with a specialized anti-corrosion film before being secured in custom-fitted, shock-absorbing cardboard. These are then packed tightly into heavy-duty, fumigated wooden boxes that meet all international shipping standards, ensuring absolute protection against saline moisture and mechanical impacts.
