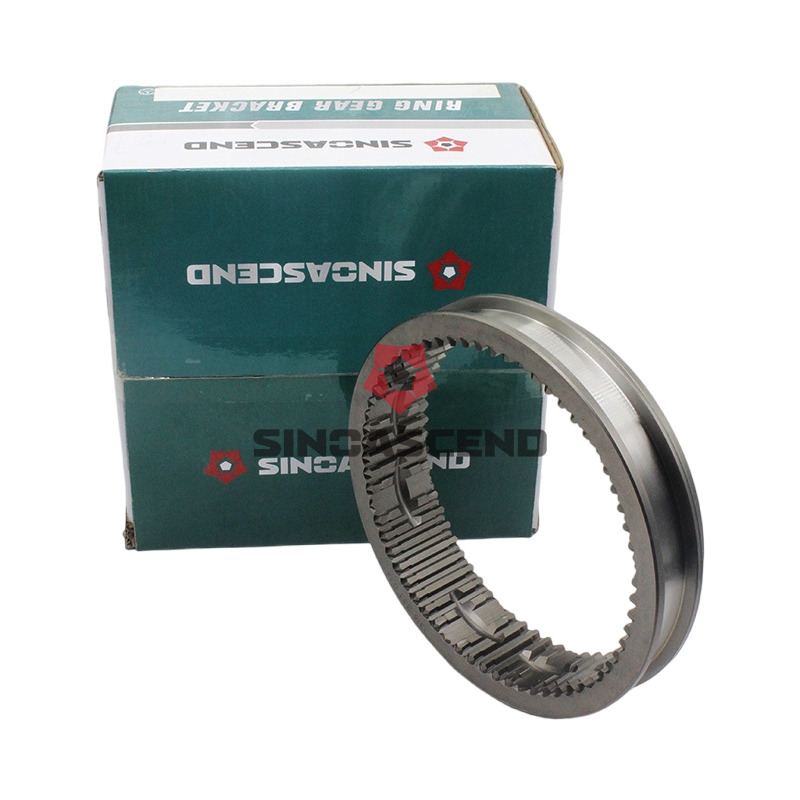

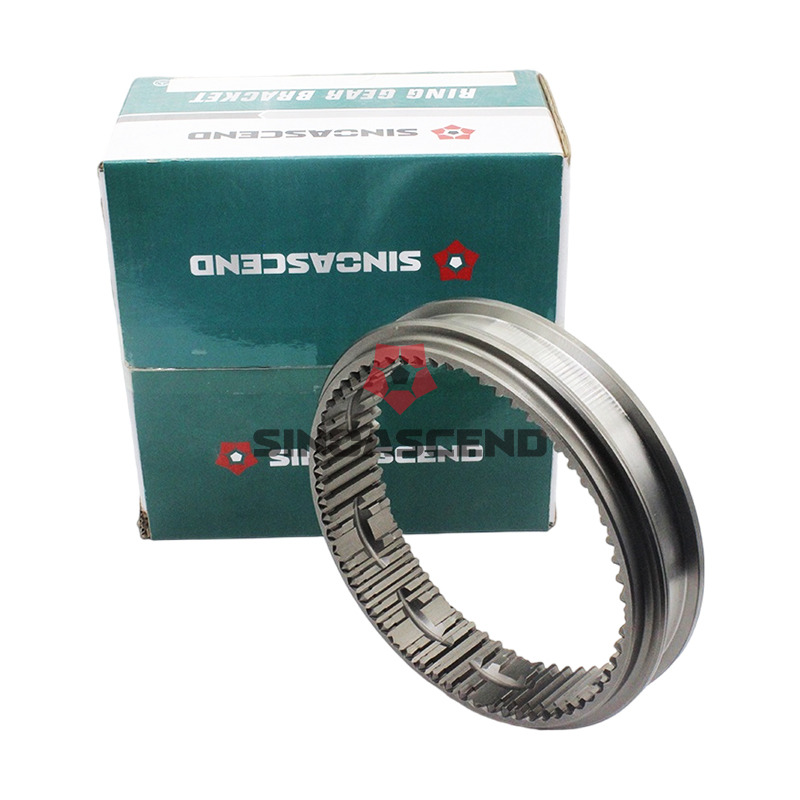

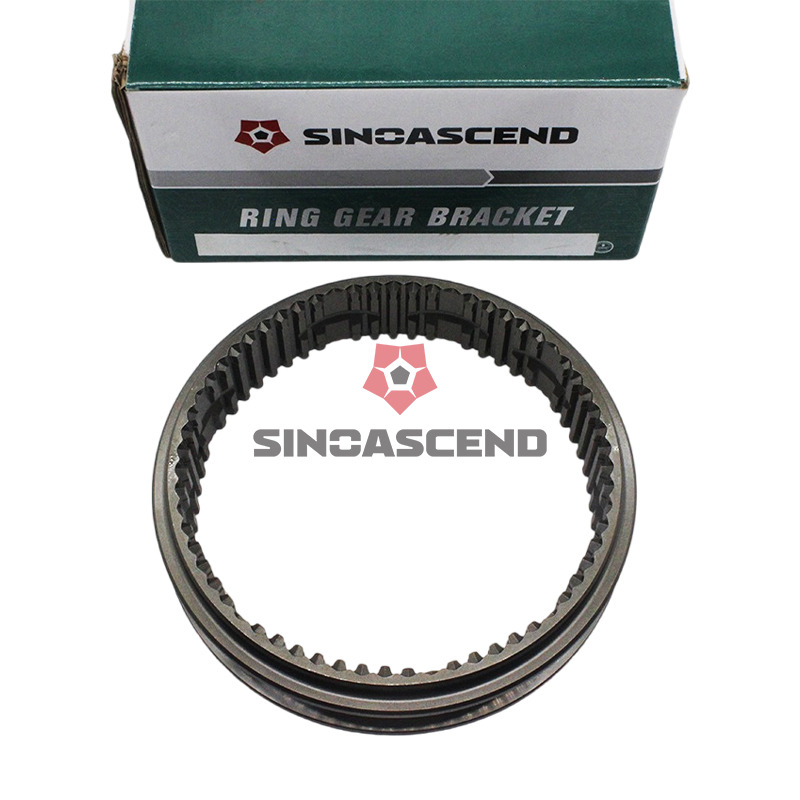

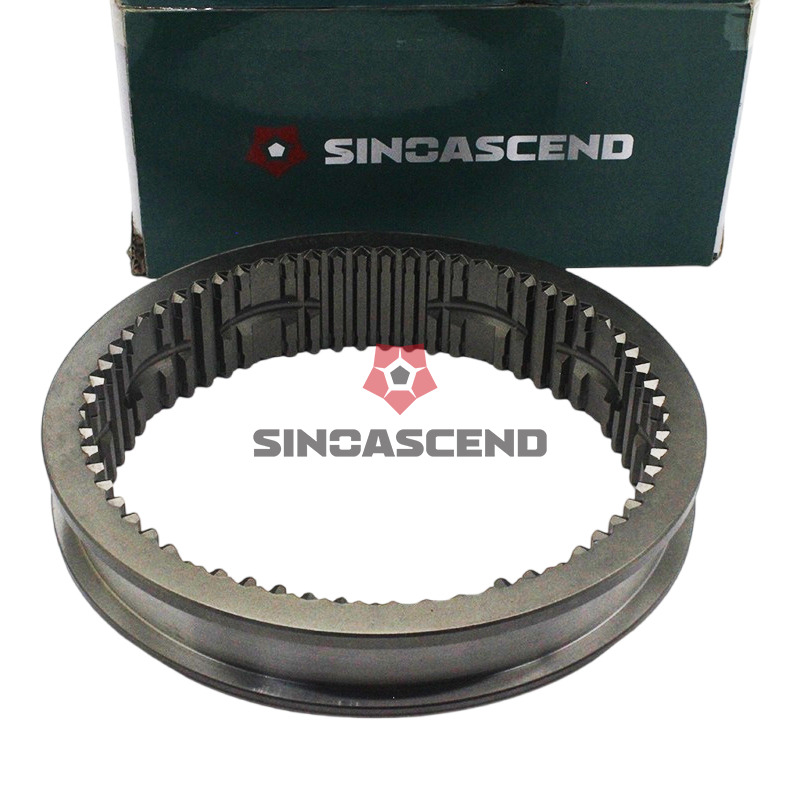

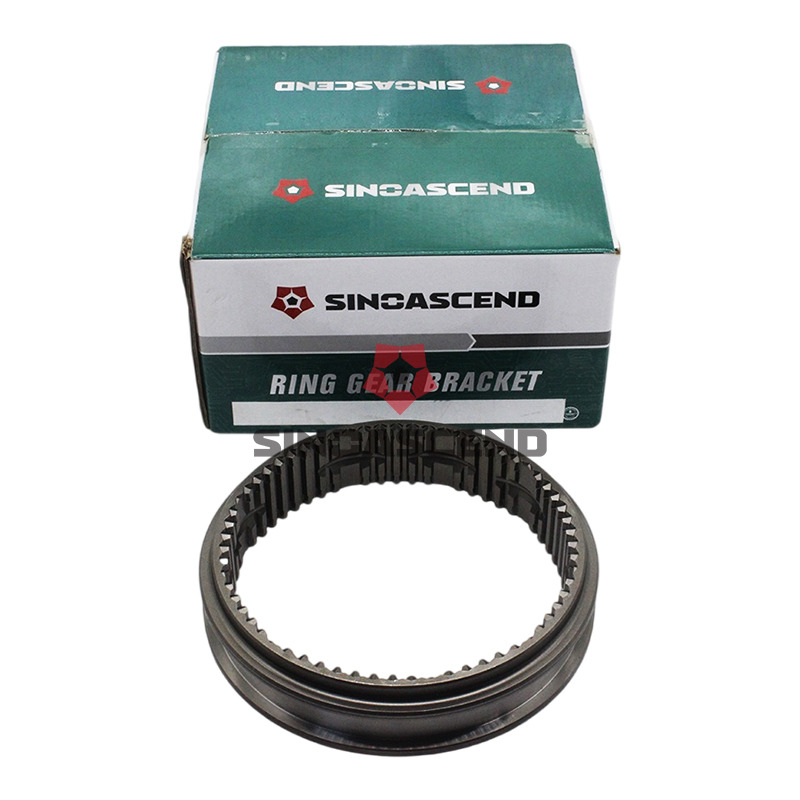

ZF Synchronizer Sleeve for Truck Gearboxes Transmissions

The synchronizer sleeve is the beating heart of a heavy-duty truck's manual transmission system, dictating the smoothness and reliability of every single gear shift. When your fleet operates under punishing loads and relentless schedules, the tactile feedback of a crisp, vibration-free shift translates directly into driver efficiency and reduced mechanical wear. Crafted from high-grade alloy steel, this sleeve feels substantial in hand, carrying the dense, cool weight of pure industrial resilience. The meticulously machined splines catch the light with a mirror-like finish, a visual testament to the ultra-low surface roughness that eliminates grating noises and grinding sensations during operation. By bridging the rotational speed gap with absolute precision, this component eradicates the harsh clashing sounds that typically plague aging gearboxes. Instead, it delivers a deeply satisfying, muted click as gears engage, ensuring that immense torque is transferred seamlessly. For procurement managers and fleet operators, integrating this precision-crafted sleeve means fewer unexpected breakdowns, significantly reduced maintenance downtime, and a smoother, more predictable operational cadence across the entire fleet.

Upgrading your transmission systems requires components that go beyond basic functionality. Our synchronizer sleeves are engineered to deliver unparalleled operational stability, transforming raw engine power into smooth, controlled motion.

• Acoustic Refinement: The precisely cut tooth profiles drastically reduce the whining and grinding sounds often associated with heavy-duty gearboxes, creating a quieter cabin environment.

• Thermal Resilience: Designed to operate flawlessly within air-cooled systems, the sleeve dissipates heat rapidly, preventing thermal expansion that could lead to gear binding.

• Tactile Precision: Drivers experience a firm, positive engagement with every shift, eliminating the vague, spongy feeling of inferior aftermarket parts.

• High-Torque Management: Capable of handling a massive 1000 lb-ft of torque, ensuring that even fully loaded dump trucks navigate steep inclines without transmission slippage.

Core Material & Durability

Premium Metallurgy for Extreme Environments

The foundation of exceptional transmission performance lies in the raw materials. We utilize premium high-strength alloy steel, specifically selected for its extraordinary load-bearing capabilities.

• Secondary Forging Process: Each sleeve undergoes a rigorous secondary forging process, aligning the internal grain structure of the metal to maximize resistance against microscopic fractures.

• Wear Resistance: The inherent toughness of the alloy steel prevents premature spline degradation, ensuring the sleeve maintains its geometric integrity over hundreds of thousands of miles.

• Fatigue Mitigation: By absorbing and distributing the immense shock loads generated during rapid gear changes, this material significantly lowers the failure rate in punishing environments.

• Extended Lifecycle: Investing in superior metallurgy directly translates to extended service intervals, keeping your commercial vehicles on the road and out of the repair bay.

Precision Machining & High Accuracy

State-of-the-Art Manufacturing Tolerances

Manufacturing a component that spins at thousands of revolutions per minute demands uncompromising accuracy. Our production facilities leverage state-of-the-art CNC machinery to achieve exacting tolerances.

• ISO 6-8 Tooth Profile Accuracy: Every gear tooth is cut with surgical precision, guaranteeing a perfect mesh with mating components and eliminating parasitic power loss.

• Ultra-Smooth Surface Finish: Achieving a surface roughness of Ra ≤ 1.6 μm means the metal glides effortlessly, drastically reducing friction-induced heat.

• Advanced Honing Techniques: Post-machining honing removes microscopic burrs, resulting in a glass-like finish that prevents the premature wear of synchronizer rings.

• Vibration Eradication: The flawless concentricity of the sleeve ensures balanced rotation, preventing the deep, structural vibrations that can loosen adjacent transmission components.

Heat Treatment & Surface Strengthening

Dual-Layered Physical Characteristics

To survive the brutal environment inside a commercial gearbox, raw steel must be transformed. Our proprietary thermal processing creates a component that is simultaneously impenetrable on the outside and resilient on the inside.

• Deep Carburization: Subjected to over 12 hours of intensive carburizing and quenching, the carbon-rich surface achieves a formidable hardness of 58-62 HRC.

• Optimal Infiltration Depth: An infiltration layer of 0.8-1.2mm acts as a robust armor against abrasive wear, while the core remains ductile enough to absorb sudden impact shocks.

• Shot Peening Enhancement: Bombarding the surface with high-velocity media introduces beneficial residual compressive stress, effectively sealing micro-fissures.

• Fatigue Life Extension: This dual-layered physical characteristic—an unyielding exterior paired with a shock-absorbing core—boosts overall fatigue life by an impressive 20% to 30%.

Perfect Fit & OEM Compatibility

Seamless Integration for Major Fleets

Integration into existing fleet architectures must be seamless. This synchronizer sleeve is engineered to mirror the exact dimensional specifications of original equipment, ensuring flawless compatibility.

• Strict Dimensional Tolerances: With tooth alignment errors restricted to ≤ 0.02mm, mechanics can slide the sleeve into place without the need for forceful persuasion or custom modifications.

• Broad European Fleet Application: Perfectly calibrated to integrate with mainstream European heavy-duty commercial vehicles, offering a versatile solution for diverse motor pools.

• Seamless Power Transmission: The exact fitment guarantees that the synchronizer cones and gears align instantaneously, facilitating rapid and efficient power delivery.

• Reduced Installation Time: By eliminating fitment guesswork, workshop technicians can complete transmission rebuilds significantly faster, lowering labor costs.

Stringent Quality Control & Testing

Uncompromising Assurance Protocols

Trust is built on consistency. Our manufacturing ecosystem is governed by an uncompromising quality assurance protocol, ensuring that every single unit performs flawlessly under pressure.

• ISO9001 Certified Facilities: Our production lines operate under globally recognized quality management systems, guaranteeing standardized excellence across every batch.

• 100% End-of-Line Inspection: Before any sleeve is packaged, it undergoes rigorous dimensional and metallurgical testing to confirm it meets strict operational criteria.

• Pre-Production Sampling: We mandate a comprehensive evaluation of pre-production samples, establishing a flawless baseline before mass manufacturing commences.

• Guaranteed Reliability: Procurement specialists can confidently source these components, knowing that each piece delivers original-equipment-level dependability without the inflated price tag.

Secure Packaging & Logistics

Protecting Your Investment Globally

A precision component is only valuable if it arrives in pristine condition. We have engineered our packaging and logistics network to protect your investment across global transit routes.

• Heavy-Duty Protection: Each 3.000 kg sleeve is secured within customized, thickened wooden boxes, shielding the delicate machined surfaces from impact and moisture during sea freight.

• Eco-Friendly Materials: We utilize sustainable packaging solutions that not only protect the goods but also align with modern corporate environmental responsibility standards.

• Custom Branding Options: We offer tailored packaging designs, allowing you to reinforce your brand identity upon delivery to your distribution centers.

• Rapid Fulfillment: Supported by a robust production capacity of 5000 pieces per month, we guarantee swift lead times of 7 to 15 days, ensuring your supply chain remains fluid and uninterrupted.

After-Sales Service & Direct Manufacturer Advantages

Strategic Partnership and Support

Partnering with a source manufacturer provides strategic advantages that extend far beyond the initial purchase. We are committed to fostering long-term operational success for our clients.

• Direct Sourcing Economics: By bypassing intermediaries, we deliver premium transmission components at highly competitive price points, maximizing your procurement budget.

• Comprehensive Warranty: We stand behind our craftsmanship with a solid 1-year (12-month) warranty, offering total peace of mind against manufacturing defects.

• Dedicated Technical Support: Our team of seasoned engineers is available to provide expert guidance on installation, maintenance, and compatibility, ensuring optimal product performance.

• Decade of Expertise: With over ten years dedicated exclusively to heavy-duty auto parts, our deep industry knowledge translates into superior product refinement and reliable market insights.

Why Choose Us

Your Trusted Source for Heavy-Duty Components

Selecting the right manufacturing partner is just as critical as the components themselves. Jinan Sinorise Import And Export Co., Ltd. stands as a beacon of reliability in the heavy-duty automotive sector.

• Decade of Excellence: With over ten years of dedicated experience in the commercial vehicle parts industry, we possess the technical acumen to solve complex transmission challenges.

• Dual Factory Advantage: Operating two state-of-the-art manufacturing facilities with a workforce of 500 skilled personnel ensures that our production lines never stall, guaranteeing your delivery schedules.

• Premium Raw Materials: We refuse to compromise on metallurgy. By sourcing only high-grade materials, we dramatically extend the service life of our products, reducing your total cost of ownership.

• Unmatched Value: As a direct source, we eliminate intermediary markups, providing you with highly competitive pricing structures that protect your profit margins without sacrificing quality.

SINOSASEND's unique high-end cardboard box and customized wooden box packaging.

Packaging is environmentally friendly, shaping the brand, and enhancing the brand image.

To better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient, and efficient packaging services.

Navigating the technical specifications of heavy-duty transmission parts requires absolute clarity. Below, we address the most critical inquiries regarding our synchronizer sleeves.

• What specific advantages does the 58-62 HRC surface hardness provide?
        Achieving a surface hardness of 58-62 HRC ensures that the gear teeth can withstand the extreme friction generated during high-speed shifts. This specific hardness range prevents the metal from galling or scoring, which is crucial for maintaining a smooth, quiet transition between gears over an extended lifespan.




• How does the air-cooled design impact the sleeve's performance under heavy loads?
        The air-cooled specification is engineered to maximize thermal dissipation. As the synchronizer sleeve manages massive torque loads up to 1000 lb-ft, the optimized surface geometry allows ambient transmission fluid and air to rapidly draw heat away, preventing the alloy from warping or losing its temper.




• Can this synchronizer sleeve accommodate custom packaging requests for large-scale orders?
        Yes. While our standard packaging involves robust, thickened wooden boxes measuring 50.00cm * 50.00cm * 60.00cm to prevent transit damage, we fully support customized packaging solutions. This allows you to integrate your own branding seamlessly into your distribution network.




• What is the significance of the Ra ≤ 1.6 μm surface roughness?
        A surface roughness of Ra ≤ 1.6 μm indicates an incredibly smooth, mirror-like finish. In practical terms, this drastically reduces the coefficient of friction when the sleeve engages with the synchronizer ring, resulting in a tactile, effortless shift and eliminating the harsh, grinding sounds associated with rougher aftermarket parts.




• How do you ensure consistent quality across a production capacity of 5000 pieces per month?
        Consistency is maintained through strict adherence to ISO9001 protocols. Every single unit undergoes a 100% final inspection before shipment. We utilize advanced CNC machinery and automated heat treatment furnaces to remove human error, ensuring that the first piece and the five-thousandth piece are dimensionally and metallurgically identical.
